P 22 DFS Blinking LED Panel Mount Indicator
230 V AC, LED, Red,
Product number:
23271105000
Red blinking LED panel mount indicator P 22 DFS:

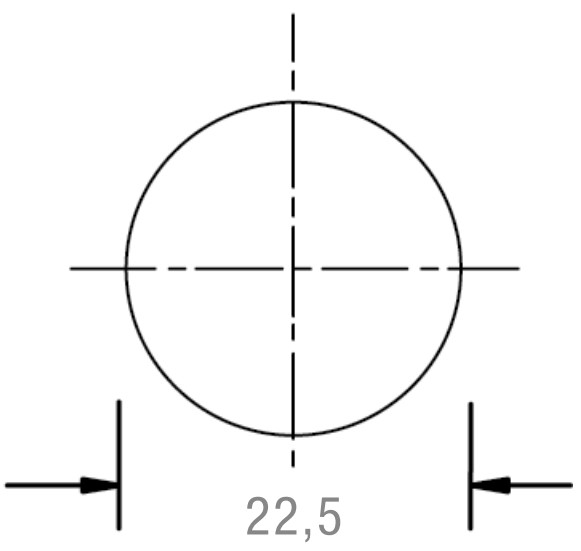

- indicator lamps for 22.5 mm mounting hole
- guaranteed high protection class (IP 65) to the housing
- superior shape, hence high signaling effect on all sides
- optimum illumination through the use of multi-chip LED array
- easy to mount label holders available as accessories
- operating temperature: -25C - +50C
- simple electrical connection by means of screw terminals
TECHNICAL DATA
Technical Data
- Lense Colour
- Red
- Housing Colour
- RAL 9011
- Voltage Range (AC) V
- 220-240 V AC
- Rated Voltage(s) (AC) V
- 230 V AC
- Type of Current
- AC
- Operating Temp. °C
- -20 °C ... +65 °C
- IP Protection System
- 65
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption A
- 0,02 A
- Lamp Type
- LED
- Operating Mode
- Continuous Light
- Flash Rate Hz
- 2 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Connecting terminals
- screw terminals 1.5 mm²
- Dimensions (H | W | D) mm
- 64 mm | 29 mm | 29 mm
- Weight (without packaging) kg
- 0,09 kg
- ETIM-Class
- EC000272
- Lense Colour
- Red
- Housing Colour
- RAL 9011
- Voltage Range (AC) V
- 220-240 V AC
- Rated Voltage(s) (AC) V
- 230 V AC
- Type of Current
- AC
- Operating Temperature
- -4 °F ... +149 °F
- IP Protection System
- 65
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.02 A
- Lamp Type
- LED
- Operating Mode
- Continuous Light
- Flash Rate Hz
- 2 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Connecting terminals
- screw terminals 1.5 mm²
- Dimensions (H | W | D)
- 2.52 in. | 1.14 in. | 1.14 in.
- Weight (without packaging)
- 0.2 lbs
- ETIM-Class
- EC000272
Technical Data

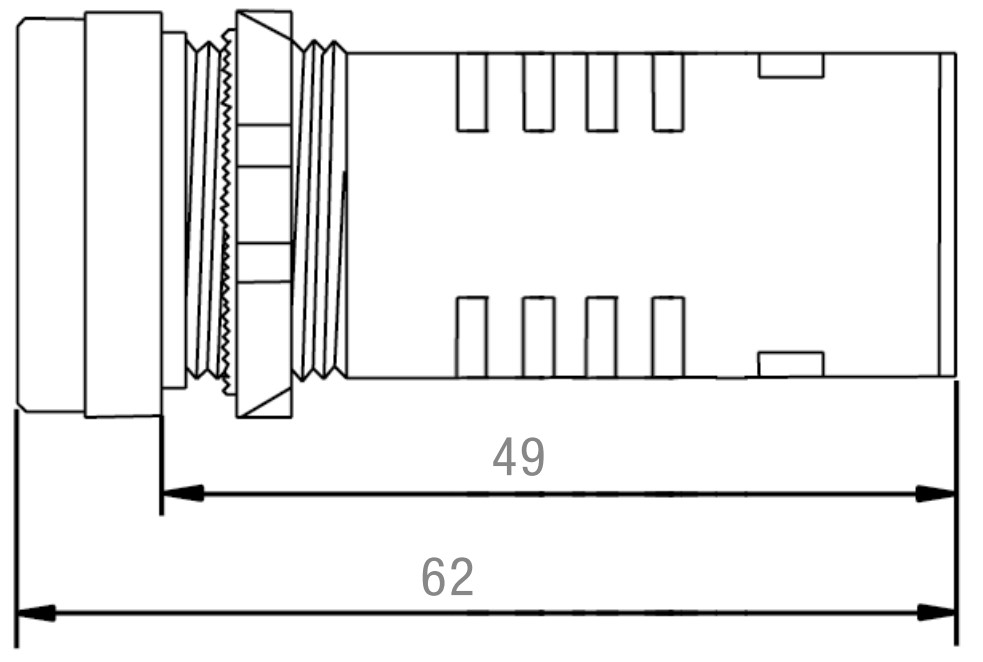

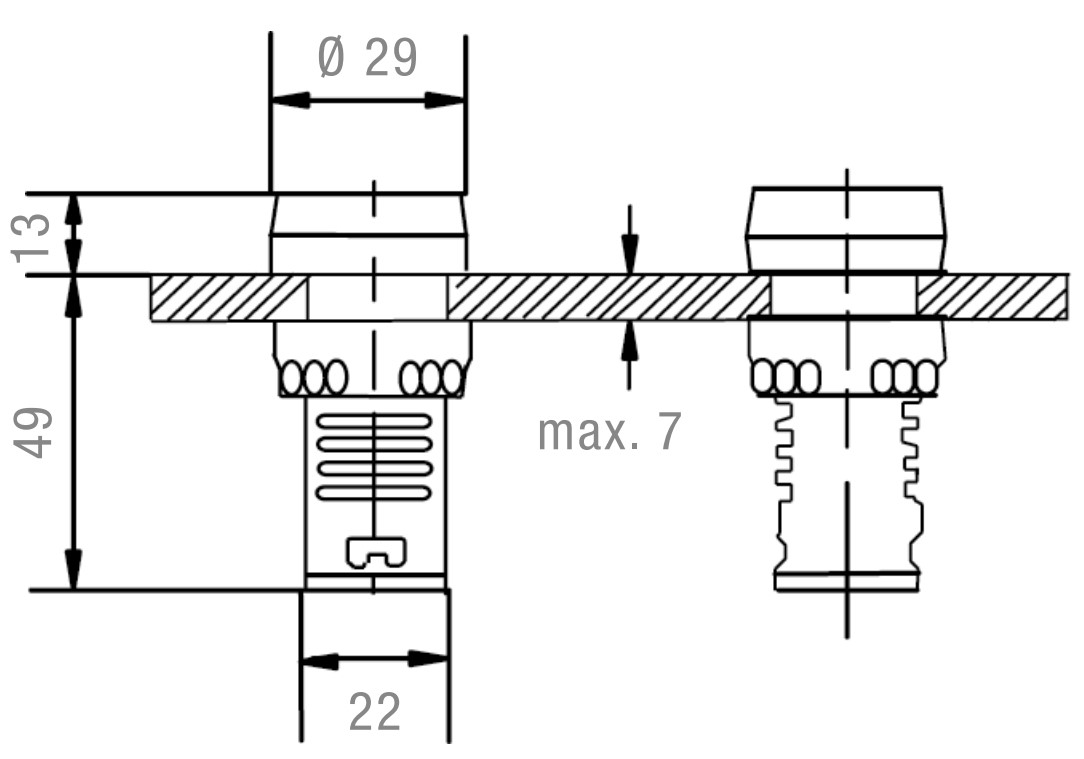

TECHNICAL DRAWINGS
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
![P 22 DFS Blinking LED Panel Mount Indicator]( "P 22 DFS Blinking LED Panel Mount Indicator")
Technical Drawings
Technical Drawings
