Pyra PY L-M-M LED multi light, monitored
12, 24, 48 V DC, LED, Green,
Product number:
21553816004

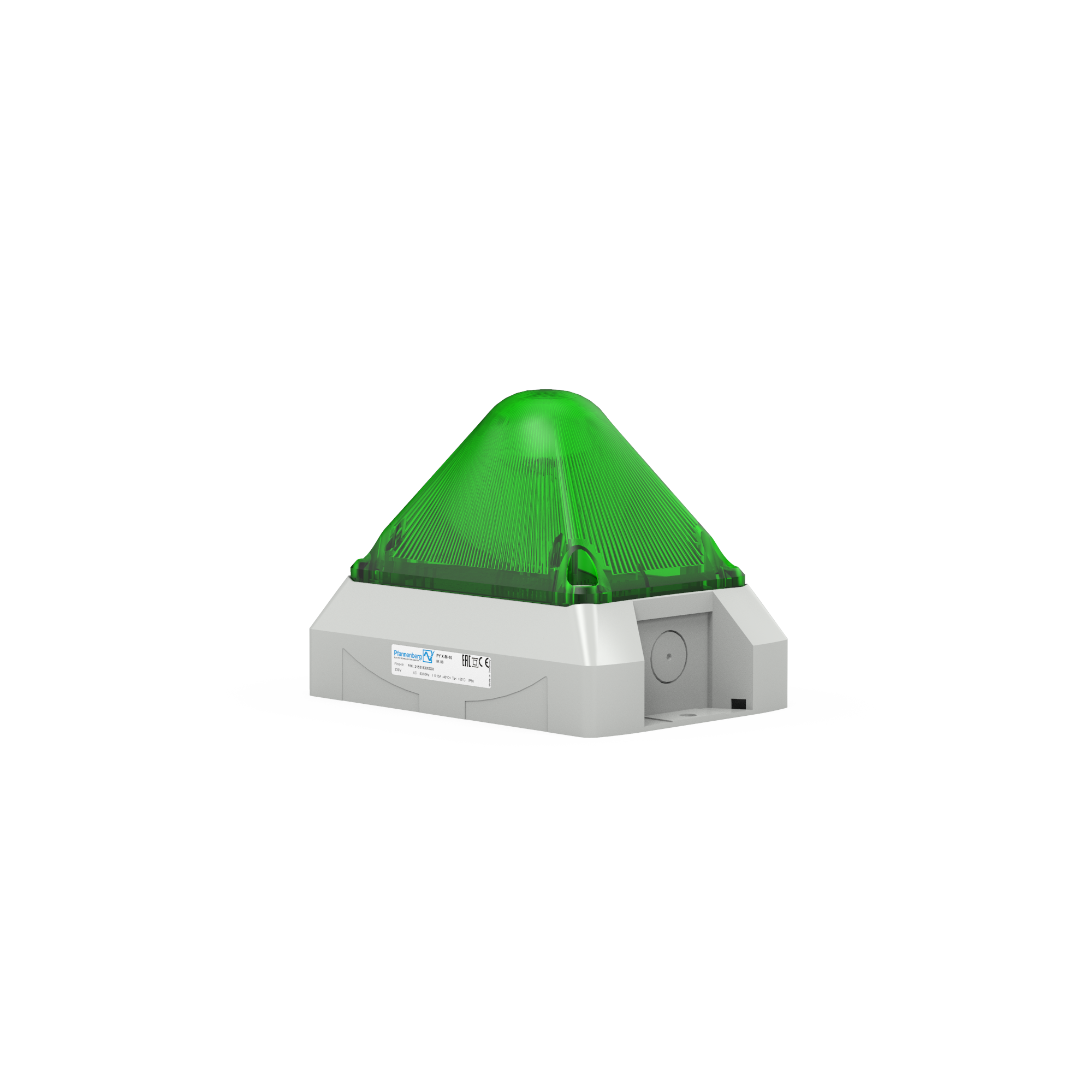

This function-monitored LED light with grüner lens and grey base not only adapts to many applications, but is particularly impressive thanks to its safe and simple installation The PY L-M-M ensures more safety in sensitive applications where a signal must be sent to an external safety system, operating station or control centre in the event of a malfunction.
- Mounting option via external brackets or internal holes - Alarm output max. 230V,120mA(AC,DC) Alarm output typ potential free, opens on error
- Electrical contact only in the assembled lower part. Cables can be connected according to the junction box principle. No 3-hand assembly (device - screwdriver - wire). No pull/pressure on the terminals or other components, no squeezing of the cables
- Various signal types and flashing frequencies can be selected (internal, RGB also external): continuous light, blinking light ( 1 / 2 Hz ), flashing light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz )
- Multi voltage power supply unit 10-60 V DC
- Housing and lens are made of impact-resistant polycarbonate (IK 08)
- Protection class: IP 66 (EN 60529), NEMA TYPE 4/4x, IK 08 (EN 50102)
- Maximum viewing distance: 111m
- Service life of the light sourcee: > 50000h
- Dimensions: LxWxH 166 x 114 x 124 mm
- Lens colours: clear, yellow, orange, red, green, blue and the RGB version where the colour is freely adjustable
- Operating temperature: -40C - +55C
- 10 years warranty
TECHNICAL DATA
Technical Data
- Signaling area (L | W | H) m
- 5,8 m | 7,2 m | 8,8 m
- Signaling area width m
- 7,2 m
- Signaling area height m
- 8,8 m
- Signaling area length m
- 5,8 m
- Lense Colour
- Green
- Housing Colour
- RAL 7035
- Voltage Range (DC) V
- 10-60 V DC
- Rated Voltage(s) (DC) V
- 12, 24, 48 V DC
- Type of Current
- DC
- Operating Temp. °C
- -40 °C ... +55 °C
- IP Protection System
- 66
- NEMA
- 4/4X
- Housing material
- PC / ABS blend
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption A
- 0,28 A
- Lamp Type
- LED
- Operating Mode
- Continuous Light, Blinking Light, Flashing Light
- Light Intensity cd
- 13 cd
- Flash Rate Hz
- 0,1/0,5/0,75/1/2 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- yes
- Dimensions (H | W | D) mm
- 124 mm | 166 mm | 114 mm
- Weight (without packaging) kg
- 0,4 kg
- ETIM-Class
- EC002975
- Signaling area (L | W | H)
- 19.03 ft. | 23.62 ft. | 28.88 ft.
- Signaling area width
- 23.62 ft.
- Signaling area height
- 28.88 ft.
- Signaling area length
- 19.03 ft.
- Lense Colour
- Green
- Housing Colour
- RAL 7035
- Voltage Range (DC) V
- 10-60 V DC
- Rated Voltage(s) (DC) V
- 12, 24, 48 V DC
- Type of Current
- DC
- Operating Temperature
- -40 °F ... +131 °F
- IP Protection System
- 66
- NEMA
- 4/4X
- Housing material
- PC / ABS blend
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.28 A
- Lamp Type
- LED
- Operating Mode
- Continuous Light, Blinking Light, Flashing Light
- Light Intensity cd
- 13 cd
- Flash Rate Hz
- 0,1/0,5/0,75/1/2 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- yes
- Dimensions (H | W | D)
- 4.88 in. | 6.54 in. | 4.49 in.
- Weight (without packaging)
- 0.88 lbs
- ETIM-Class
- EC002975
