BExB G15-D Flashing Light Ex-ATEX

24 V DC, XENON, Amber,

Product number: 31111804000

more less

Flashing light with amber lens and red housing

Ideal for almost all installation requirements: wall, ceiling and floor mounting
Categories 2G (zone 1 and 2), 2D (zone 21 and 22)
Extremely bright
Large connection space for easy installation
D = Ex db / Ex tb
Operating temperature: -40C ... +70C
Very robust design made of seawater-resistant aluminum and stainless steel protective cage
Also availably with connection box in increased safety E

Description

Flashing light with amber lens and red housing

Ideal for almost all installation requirements: wall, ceiling and floor mounting
Categories 2G (zone 1 and 2), 2D (zone 21 and 22)
Extremely bright
Large connection space for easy installation
D = Ex db / Ex tb
Operating temperature: -40C ... +70C
Very robust design made of seawater-resistant aluminum and stainless steel protective cage
Also availably with connection box in increased safety E

TECHNICAL DATA

Technical Data

Signaling area (L | W | H) m: 27,4 m | 27,4 m | 21,8 m
Signaling area height m: 21,8 m
Signaling area length m: 27,4 m
Signaling area width m: 27,4 m
Lense Colour: Amber
Housing Colour: RAL 3000
Voltage Range (DC) V: 18-30 V DC
Rated Voltage(s) (DC) V: 24 V DC
Type of Current: DC
Operating Temp. °C: -40 °C ... +70 °C
IP Protection System: 66/67
Housing material: Die-Cast Aluminium, Resistant To Salt Water, Marine Grade LM6
Max. Relative Humidity: 90 %
El. Protection Class: 1
Duty Cycle: 100 %
Max. Current Consumption A: 0,86 A
Lamp Type: XENON
Operating Mode: Flashing Light
Light Intensity cd: 135 cd
Flash Energy J: 15 J
Flash Rate Hz: 1 Hz
Max. Viewing Distance m: 269,32 m
AS-i: not specified
IO-Link: no
M12-connection: no
Monitored: no
Ex-Zone Gas: 1, 2
Ex-Zone Dust: 21, 22
Ex-category Gas: 2G
Ex-category Dust: 2D
Temperature class Gas: T1,T2,T3,T4
Temperature class Dust: T99, T114, T129
Ex-Approval: yes
Cable entry: 2 x M20, of which one open, optionally PG13.5 or 1/2 inch NPT
Connecting terminals: 1 x 4 mm² or 2 x 2.5 mm²
Dimensions (H | W | D) mm: 227 mm | 165 mm | 215 mm
Height mm: 227 mm
Width mm: 165 mm
Depth mm: 215 mm
Weight (without packaging) kg: 2,45 kg
ETIM-Class: EC001335
Signaling area (L | W | H): 89.9 ft. | 89.9 ft. | 71.52 ft.
Signaling area height: 71.52 ft.
Signaling area length: 89.9 ft.
Signaling area width: 89.9 ft.
Lense Colour: Amber
Housing Colour: RAL 3000
Voltage Range (DC) V: 18-30 V DC
Rated Voltage(s) (DC) V: 24 V DC
Type of Current: DC
Operating Temperature: -40 °F ... +158 °F
IP Protection System: 66/67
Housing material: Die-Cast Aluminium, Resistant To Salt Water, Marine Grade LM6
Max. Relative Humidity: 90 %
El. Protection Class: 1
Duty Cycle: 100 %
Max. Current Consumption: 0.86 A
Lamp Type: XENON
Operating Mode: Flashing Light
Light Intensity cd: 135 cd
Flash Energy J: 15 J
Flash Rate Hz: 1 Hz
Max. Viewing Distance: 883.58 ft.
AS-i: not specified
IO-Link: no
M12-connection: no
Monitored: no
Ex-Zone Gas: 1, 2
Ex-Zone Dust: 21, 22
Ex-category Gas: 2G
Ex-category Dust: 2D
Temperature class Gas: T1,T2,T3,T4
Temperature class Dust: T99, T114, T129
Ex-Approval: yes
Cable entry: 2 x M20, of which one open, optionally PG13.5 or 1/2 inch NPT
Connecting terminals: 1 x 4 mm² or 2 x 2.5 mm²
Dimensions (H | W | D): 8.94 in. | 6.5 in. | 8.47 in.
Height: 8.94 in.
Width: 6.5 in.
Depth: 8.47 in.
Weight (without packaging): 5.4 lbs
ETIM-Class: EC001335

Technical Data

Signaling area (L | W | H) m: 27,4 m | 27,4 m | 21,8 m
Signaling area height m: 21,8 m
Signaling area length m: 27,4 m
Signaling area width m: 27,4 m
Lense Colour: Amber
Housing Colour: RAL 3000
Voltage Range (DC) V: 18-30 V DC
Rated Voltage(s) (DC) V: 24 V DC
Type of Current: DC
Operating Temp. °C: -40 °C ... +70 °C
IP Protection System: 66/67
Housing material: Die-Cast Aluminium, Resistant To Salt Water, Marine Grade LM6
Max. Relative Humidity: 90 %
El. Protection Class: 1
Duty Cycle: 100 %
Max. Current Consumption A: 0,86 A
Lamp Type: XENON
Operating Mode: Flashing Light
Light Intensity cd: 135 cd
Flash Energy J: 15 J
Flash Rate Hz: 1 Hz
Max. Viewing Distance m: 269,32 m
AS-i: not specified
IO-Link: no
M12-connection: no
Monitored: no
Ex-Zone Gas: 1, 2
Ex-Zone Dust: 21, 22
Ex-category Gas: 2G
Ex-category Dust: 2D
Temperature class Gas: T1,T2,T3,T4
Temperature class Dust: T99, T114, T129
Ex-Approval: yes
Cable entry: 2 x M20, of which one open, optionally PG13.5 or 1/2 inch NPT
Connecting terminals: 1 x 4 mm² or 2 x 2.5 mm²
Dimensions (H | W | D) mm: 227 mm | 165 mm | 215 mm
Height mm: 227 mm
Width mm: 165 mm
Depth mm: 215 mm
Weight (without packaging) kg: 2,45 kg
ETIM-Class: EC001335
Signaling area (L | W | H): 89.9 ft. | 89.9 ft. | 71.52 ft.
Signaling area height: 71.52 ft.
Signaling area length: 89.9 ft.
Signaling area width: 89.9 ft.
Lense Colour: Amber
Housing Colour: RAL 3000
Voltage Range (DC) V: 18-30 V DC
Rated Voltage(s) (DC) V: 24 V DC
Type of Current: DC
Operating Temperature: -40 °F ... +158 °F
IP Protection System: 66/67
Housing material: Die-Cast Aluminium, Resistant To Salt Water, Marine Grade LM6
Max. Relative Humidity: 90 %
El. Protection Class: 1
Duty Cycle: 100 %
Max. Current Consumption: 0.86 A
Lamp Type: XENON
Operating Mode: Flashing Light
Light Intensity cd: 135 cd
Flash Energy J: 15 J
Flash Rate Hz: 1 Hz
Max. Viewing Distance: 883.58 ft.
AS-i: not specified
IO-Link: no
M12-connection: no
Monitored: no
Ex-Zone Gas: 1, 2
Ex-Zone Dust: 21, 22
Ex-category Gas: 2G
Ex-category Dust: 2D
Temperature class Gas: T1,T2,T3,T4
Temperature class Dust: T99, T114, T129
Ex-Approval: yes
Cable entry: 2 x M20, of which one open, optionally PG13.5 or 1/2 inch NPT
Connecting terminals: 1 x 4 mm² or 2 x 2.5 mm²
Dimensions (H | W | D): 8.94 in. | 6.5 in. | 8.47 in.
Height: 8.94 in.
Width: 6.5 in.
Depth: 8.47 in.
Weight (without packaging): 5.4 lbs
ETIM-Class: EC001335

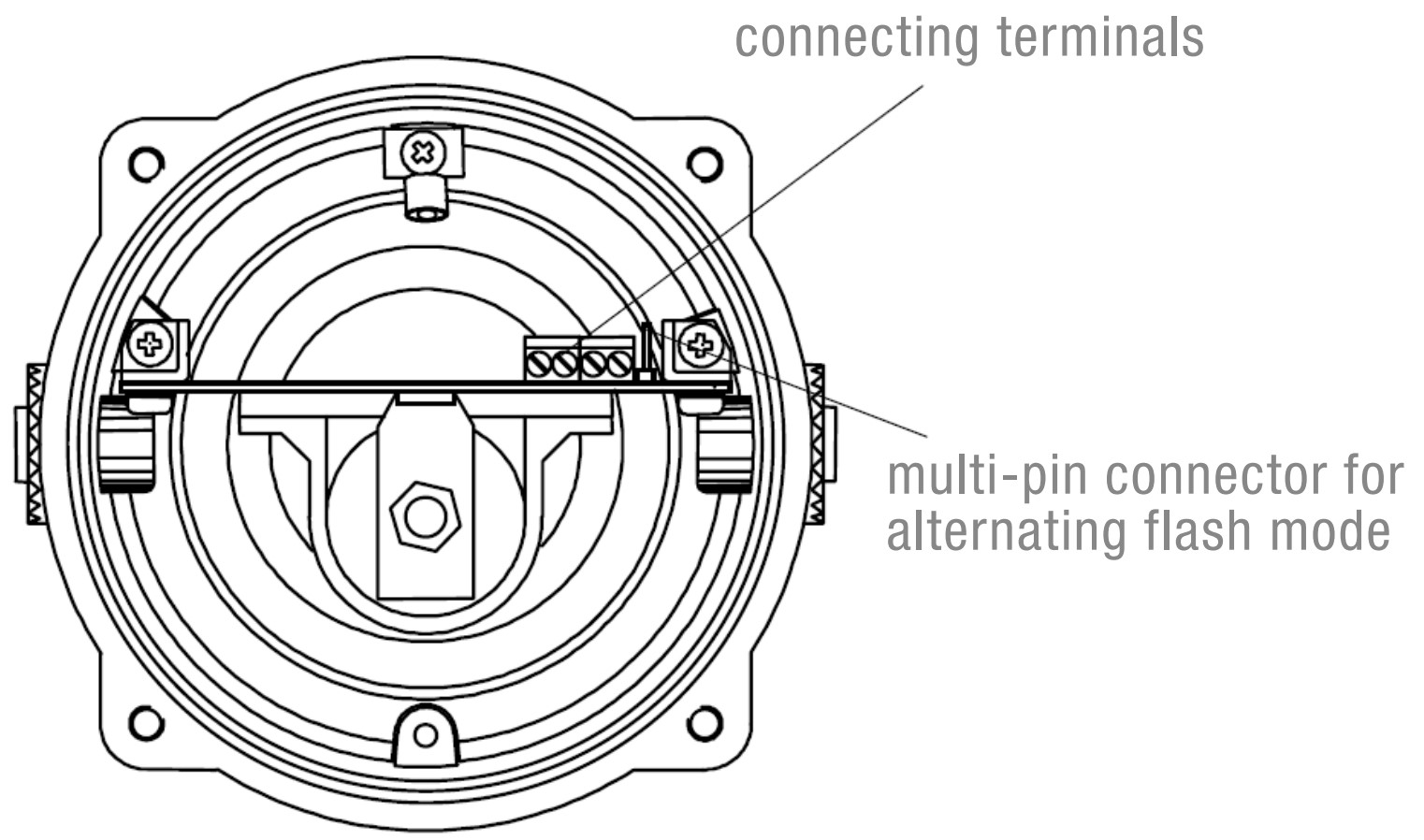

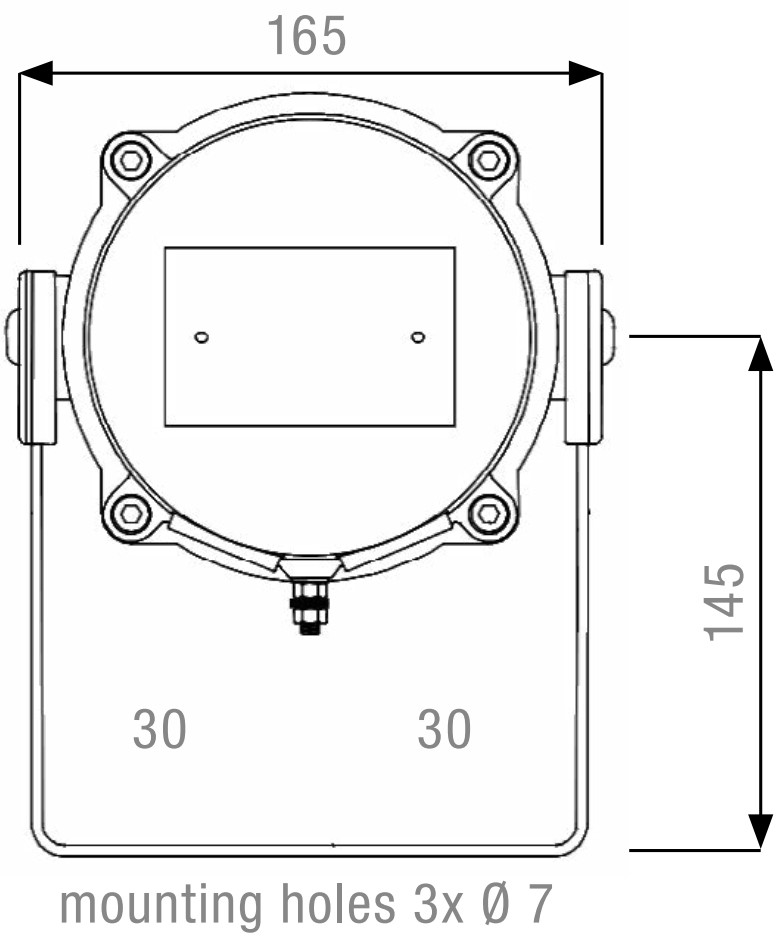

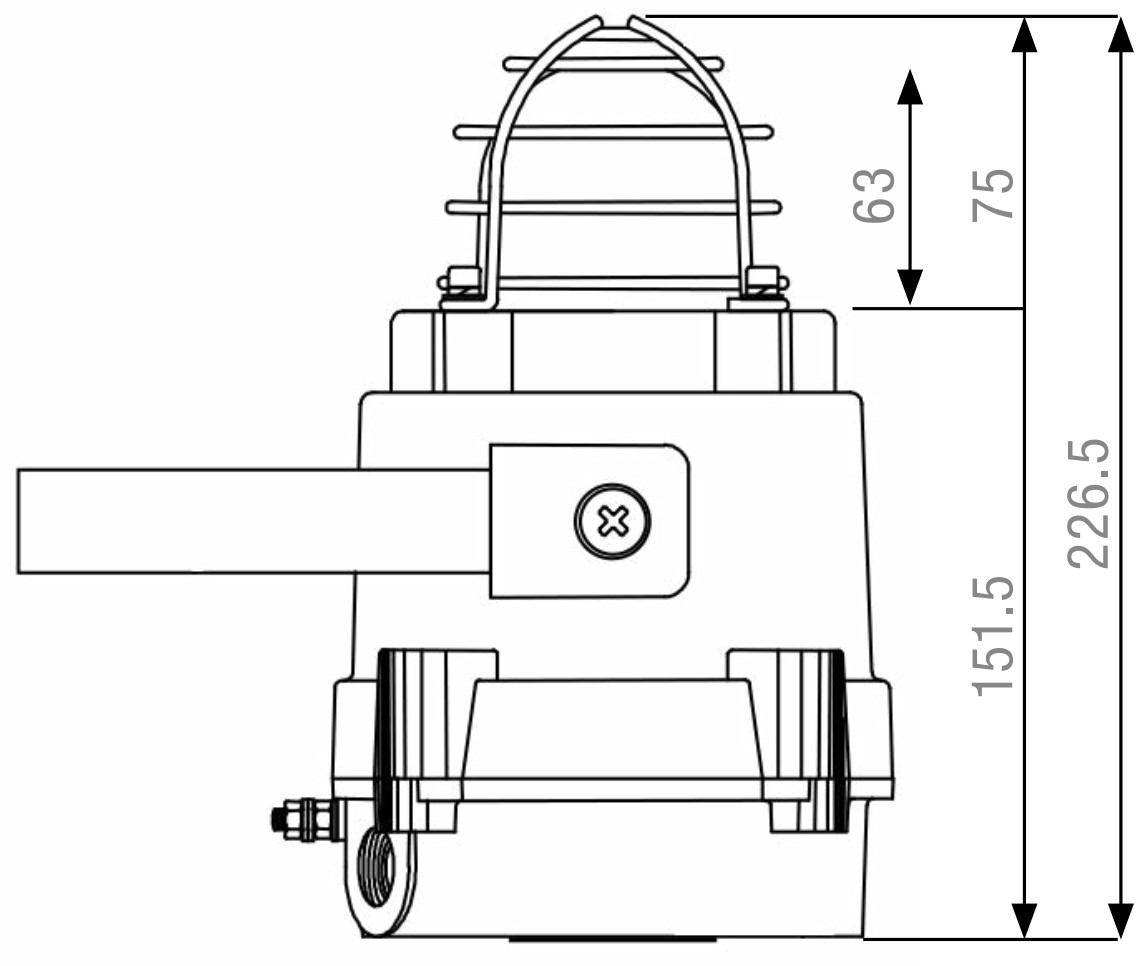

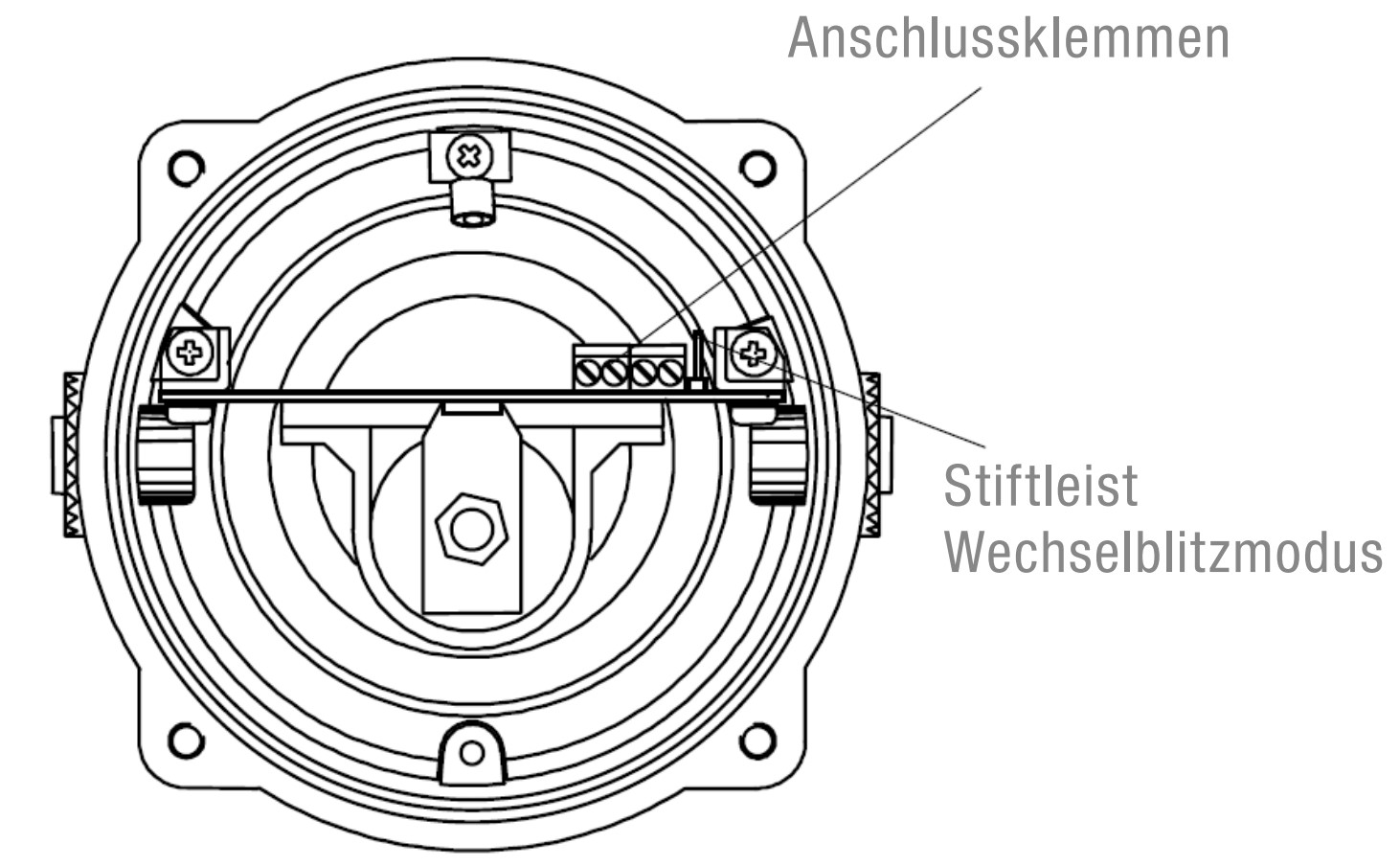

TECHNICAL DRAWINGS

Technical Drawings

ACCESSORIES

Accessories

Recommended Accessories For BExB G15-D Flashing Light Ex-ATEX

ATEX cable gland brass

Product

Accessories

Recommended Accessories For BExB G15-D Flashing Light Ex-ATEX

ATEX cable gland brass

Product

DOWNLOADS

Downloads

Description	Type	Size	Link
Conformity_CE_085506631_Rev10_Apr22_BExBG.pdf	PDF	51.6 KB	Download

Description	Language	Type	Size	Link
KEMA_Certificate_01ATEX2030X-Iss3_BExBG	German	PDF	2.27 MB	Download
Product_Sheet_DE_BexBG_05-15-ATEX	German	PDF	388.22 KB	Download
Product_Sheet_EN_BexBG_05-15-ATEX	Englisch	PDF	414.73 KB	Download
KEMA_Certificate_01ATEX2030X-Iss3_BExBG	Englisch	PDF	2.27 MB	Download
manual_bexbg_d_300170161	German	PDF	750.06 KB	Download
manual_bexbg_d_300170161	Englisch	PDF	750.06 KB	Download
