IS-mC1 Sound/LED-combi Ex-ATEX
24 V DC, LED, Blue,
Product number:
32035807000
Ex ATEX blue LED blinking light/sounder combination instrinsically safe certified for zones 0, 1 und 2 very economical visual and acoustic alarm compact design with a diameter of just 88 mm alarm operated via certified zener barriers or galvanic isolators 49 loud tones at 102 dB(A) volume control signals can operate separately very well suited for fire alarm systems and direct control due to low power consumption self-synchronising sounder for clear tone perception 2 different externally controllable tones
TECHNICAL DATA
Technical Data
- Signaling area (L | W | H) m
- 6,6 m | 7,6 m | 7,6 m
- Signaling area length m
- 6,6 m
- Signaling area width m
- 7,6 m
- Signaling area height m
- 7,6 m
- Lense Colour
- Blue
- Housing Colour
- RAL 3000
- Voltage Range (DC) V
- 16-28 V DC
- Rated Voltage(s) (DC) V
- 24 V DC
- Type of Current
- DC
- Operating Temp. °C
- -40 °C ... +60 °C
- IP Protection System
- 65
- Housing material
- ABS, self-extinguishing UL94VO & 5VA
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption A
- 0,03 A
- Lamp Type
- LED
- Operating Mode
- Blinking Light
- Light Intensity cd
- 5 cd
- Flash Rate Hz
- 1/2 Hz
- Max. Viewing Distance m
- 51,83 m
- Max. Sound dB(A)
- 102 dB(A)
- Sound Level Reduction dB
- max. -20 dB
- Number of Alarm Tones
- 49
- Number of external selectable tones
- 3
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Ex-Zone Gas
- 0, 1, 2
- Ex-Zone Dust
- NONE
- Ex-category Gas
- 1G
- Ex-category Dust
- not specified
- Temperature class Gas
- T1,T2,T3,T4
- Ex-Approval
- yes
- Cable entry
- 2x M20 (knock-outs prepared)
- Connecting terminals
- 0,5-2,5 mm2
- Dimensions (H | W | D) mm
- 95 mm | 89 mm | 116 mm
- Width mm
- 89 mm
- Depth mm
- 116 mm
- Height mm
- 95 mm
- Weight (without packaging) kg
- 0,28 kg
- ETIM-Class
- EC001356
- Signaling area (L | W | H)
- 21.65 ft. | 24.94 ft. | 24.94 ft.
- Signaling area length
- 21.65 ft.
- Signaling area width
- 24.94 ft.
- Signaling area height
- 24.94 ft.
- Lense Colour
- Blue
- Housing Colour
- RAL 3000
- Voltage Range (DC) V
- 16-28 V DC
- Rated Voltage(s) (DC) V
- 24 V DC
- Type of Current
- DC
- Operating Temperature
- -40 °F ... +140 °F
- IP Protection System
- 65
- Housing material
- ABS, self-extinguishing UL94VO & 5VA
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.03 A
- Lamp Type
- LED
- Operating Mode
- Blinking Light
- Light Intensity cd
- 5 cd
- Flash Rate Hz
- 1/2 Hz
- Max. Viewing Distance
- 170.05 ft.
- Max. Sound dB(A)
- 102 dB(A)
- Sound Level Reduction dB
- max. -20 dB
- Number of Alarm Tones
- 49
- Number of external selectable tones
- 3
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Ex-Zone Gas
- 0, 1, 2
- Ex-Zone Dust
- NONE
- Ex-category Gas
- 1G
- Ex-category Dust
- not specified
- Temperature class Gas
- T1,T2,T3,T4
- Ex-Approval
- yes
- Cable entry
- 2x M20 (knock-outs prepared)
- Connecting terminals
- 0,5-2,5 mm2
- Dimensions (H | W | D)
- 3.74 in. | 3.5 in. | 4.57 in.
- Width
- 3.5 in.
- Depth
- 4.57 in.
- Height
- 3.74 in.
- Weight (without packaging)
- 0.62 lbs
- ETIM-Class
- EC001356
Technical Data

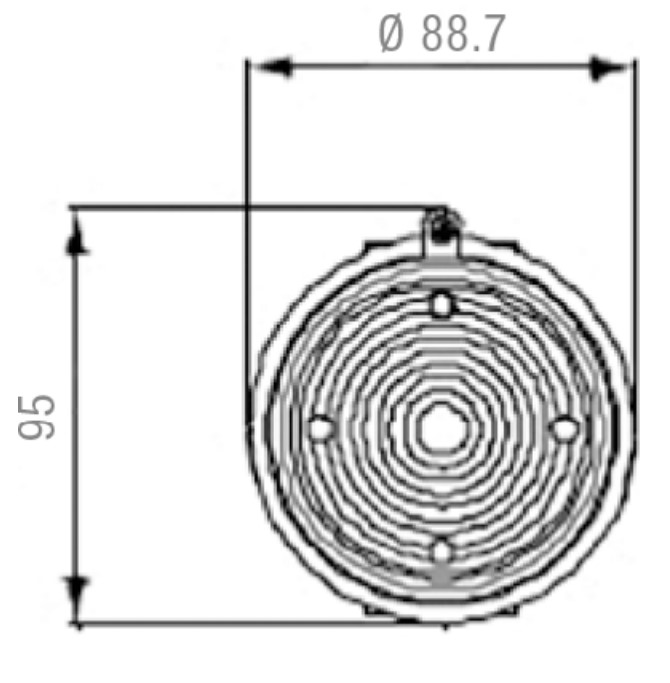

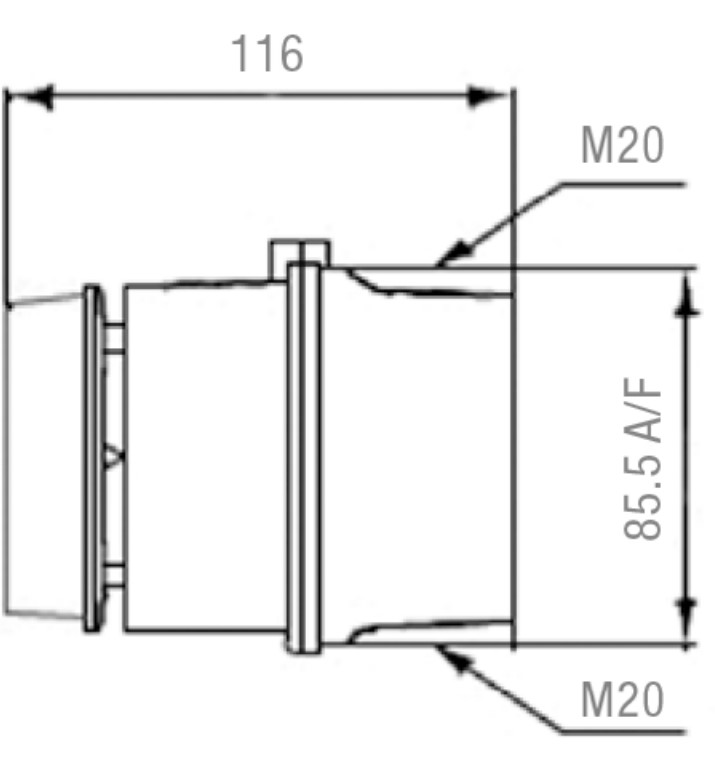

TECHNICAL DRAWINGS
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
![IS-mC1 Sound/LED-combi Ex-ATEX]( "IS-mC1 Sound/LED-combi Ex-ATEX")
