Intense BR50-BC-S250 Base / End Module with Stand M12
12, 24 V DC, 12, 24 V AC,
Product number:
28250126020

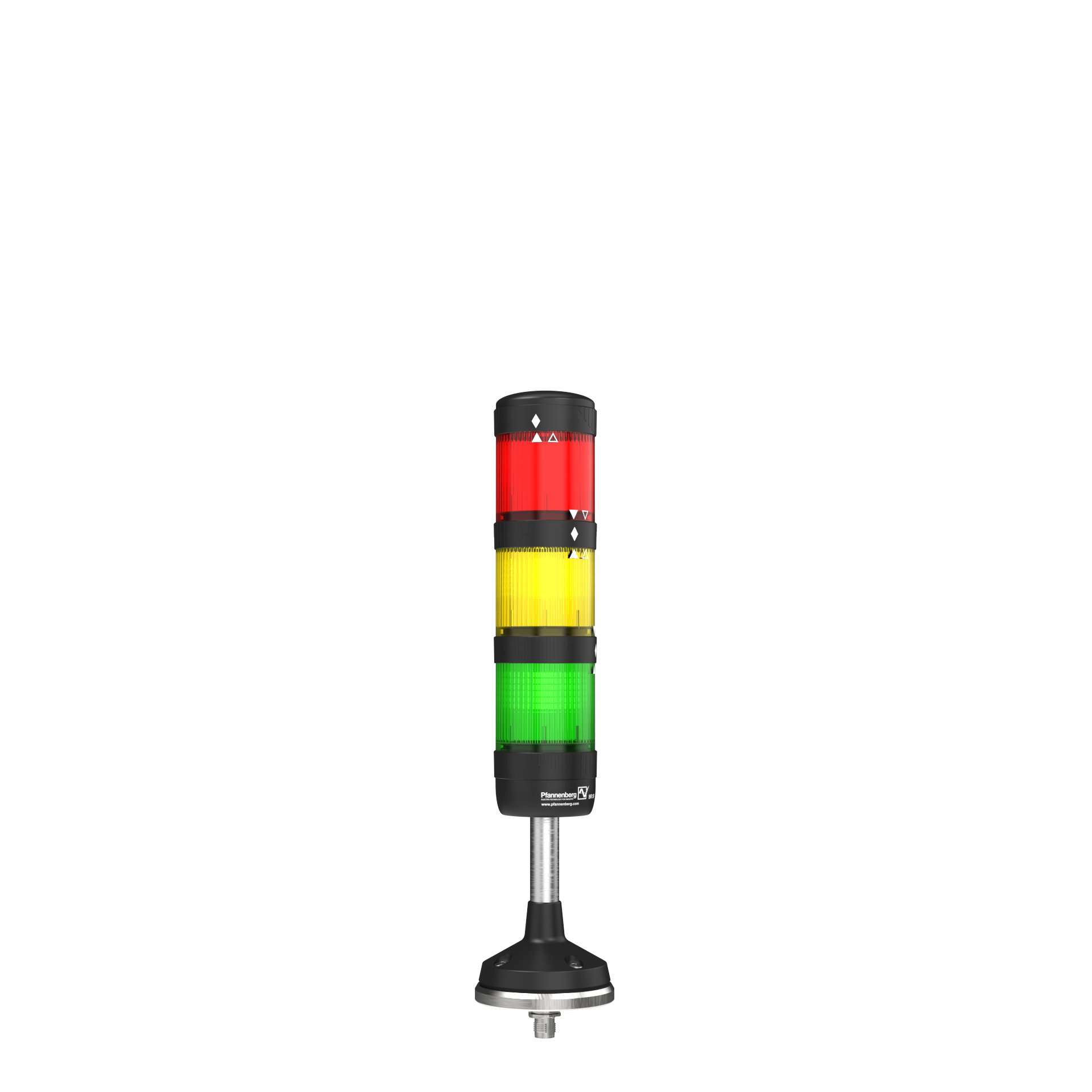

BR 50 signal tower base/end module with M12 plug including 250 mm stand with base
- up to 5 modules with 6 lens colours. They can be combined as desired by simply plugging them together, even in the field
- Can be used everywhere where machine statuses need to be displayed and warning signals given
- Modular design with sturdy housing for all indoor and outdoor applications in tough conditions
- Types of modules include continuous lights with LED, blinking light (1.5 Hz), flashing light, sounder 85 dB (A)
- Flexible building kit system guarantees easy handling
- Mechanical and electronics are decoupled, this results in a more stable construction that is less sensitive to vibrations
- Many different variations, can be fixed by means of tubular stand, tube or direct mounting
- Monitored module for greater safety, the light source has two separate LED strands. If one strand fails, the alarm contact is activated and the second strand continues to light
TECHNICAL DATA
Technical Data
- Voltage Range (DC) V
- 8,0-36 V DC
- Voltage Range (AC) V
- 8,0-36 V AC
- Rated Voltage(s) (DC) V
- 12, 24 V DC
- Rated Voltage(s) (AC) V
- 12, 24 V AC
- Type of Current
- AC/DC
- Operating Temp. °C
- -25 °C ... +50 °C
- IP Protection System
- 54
- Housing material
- ABS and stainless steel tube with PA 6 (Polyamid) plinth
- Max. Relative Humidity
- 90 %
- AS-i
- no
- IO-Link
- no
- M12-connection
- yes
- Monitored
- no
- Dimensions (H | W | D) mm
- 315 mm | 75 mm | 75 mm
- Weight (without packaging) kg
- 0,44 kg
- ETIM-Class
- EC001152
- Voltage Range (DC) V
- 8,0-36 V DC
- Voltage Range (AC) V
- 8,0-36 V AC
- Rated Voltage(s) (DC) V
- 12, 24 V DC
- Rated Voltage(s) (AC) V
- 12, 24 V AC
- Type of Current
- AC/DC
- Operating Temperature
- -13 °F ... +122 °F
- IP Protection System
- 54
- Housing material
- ABS and stainless steel tube with PA 6 (Polyamid) plinth
- Max. Relative Humidity
- 90 %
- AS-i
- no
- IO-Link
- no
- M12-connection
- yes
- Monitored
- no
- Dimensions (H | W | D)
- 12.4 in. | 2.95 in. | 2.95 in.
- Weight (without packaging)
- 0.96 lbs
- ETIM-Class
- EC001152
Technical Data
TECHNICAL DRAWINGS
Technical Drawings
DOWNLOADS
Downloads
| Description | Language | Type | Size | Link |
|---|---|---|---|---|
| UL_Certificate_BR50 | Englisch | 225.27 KB | Download | |
| 3D-model_STEP_SAT_IGS_BR50 | German | ZIP | 12.86 MB | Download |
| Manual_Signal_Tower_BR_50 | German | 4.3 MB | Download | |
| Manual_Signal_Tower_BR_50 | Englisch | 4.3 MB | Download | |
| EAC_Certificate_Signaling | German | 293.12 KB | Download | |
| EAC_Certificate_Signaling | Englisch | 293.12 KB | Download | |
| 3D-model_STEP_SAT_IGS_BR50 | Englisch | ZIP | 12.86 MB | Download |
| Order_options_How_to_configurate_BR50 | Englisch | 1.88 MB | Download | |
| UL_Certificate_BR50 | German | 225.27 KB | Download | |
| Product_Sheet_EN_BR50 | Englisch | 1.4 MB | Download | |
| Product_Sheet_DE_BR50 | German | 782.59 KB | Download | |
| Order_options_How_to_configurate_BR50 | German | 1.88 MB | Download |
