PMF LED Flex Multi Light
120 V DC, 115, 230 V AC, LED, Red,
Product number:
21151645007
- Red multifunction light with the brightest LED technology, bracket mounting
- rotating mirror effect, extremely low power consumption
- highly insensitive to vibration
- maintenance-free service life exceeding 50,000 hrs
- externally selectable operating mode - one device for 4 different alarms: continuous light, blinking light, flashing light, rotating beacon effect without susceptible mechanics
- inexpensive and flexible, wide range power supplies as standard
- long-life replacement for conventional rotating mirror lights
- Dimensions: 177mm diameter x 185mm (depending on mounting type)
- Operating temperature: +55C - -30C
- 5 Lens colours: clear, orange, red, green, blue
TECHNICAL DATA
Technical Data
- Signaling area (L | W | H) m
- 9,5 m | 9,5 m | 2 m
- Signaling area width m
- 9,5 m
- Signaling area height m
- 2 m
- Signaling area length m
- 9,5 m
- Lense Colour
- Red
- Housing Colour
- RAL 9011
- Voltage Range (DC) V
- 100-350 V DC
- Voltage Range (AC) V
- 95-253 V AC
- Rated Voltage(s) (DC) V
- 120 V DC
- Rated Voltage(s) (AC) V
- 115, 230 V AC
- Type of Current
- AC/DC
- Operating Temp. °C
- -25 °C ... +55 °C
- IP Protection System
- 55
- Housing material
- Polycarbonate (PC)
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption A
- 0,06 A
- Lamp Type
- LED
- Operating Mode
- Continuous Light, Blinking Light, Flashing Light
- Light Intensity cd
- 18 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D) mm
- 260 mm | 140 mm | 145 mm
- Weight (without packaging) kg
- 1,1 kg
- ETIM-Class
- EC002975
- Signaling area (L | W | H)
- 31.17 ft. | 31.16 ft. | 6.56 ft.
- Signaling area width
- 31.16 ft.
- Signaling area height
- 6.56 ft.
- Signaling area length
- 31.17 ft.
- Lense Colour
- Red
- Housing Colour
- RAL 9011
- Voltage Range (DC) V
- 100-350 V DC
- Voltage Range (AC) V
- 95-253 V AC
- Rated Voltage(s) (DC) V
- 120 V DC
- Rated Voltage(s) (AC) V
- 115, 230 V AC
- Type of Current
- AC/DC
- Operating Temperature
- -13 °F ... +131 °F
- IP Protection System
- 55
- Housing material
- Polycarbonate (PC)
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.06 A
- Lamp Type
- LED
- Operating Mode
- Continuous Light, Blinking Light, Flashing Light
- Light Intensity cd
- 18 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D)
- 10.24 in. | 5.51 in. | 5.71 in.
- Weight (without packaging)
- 2.43 lbs
- ETIM-Class
- EC002975
Technical Data

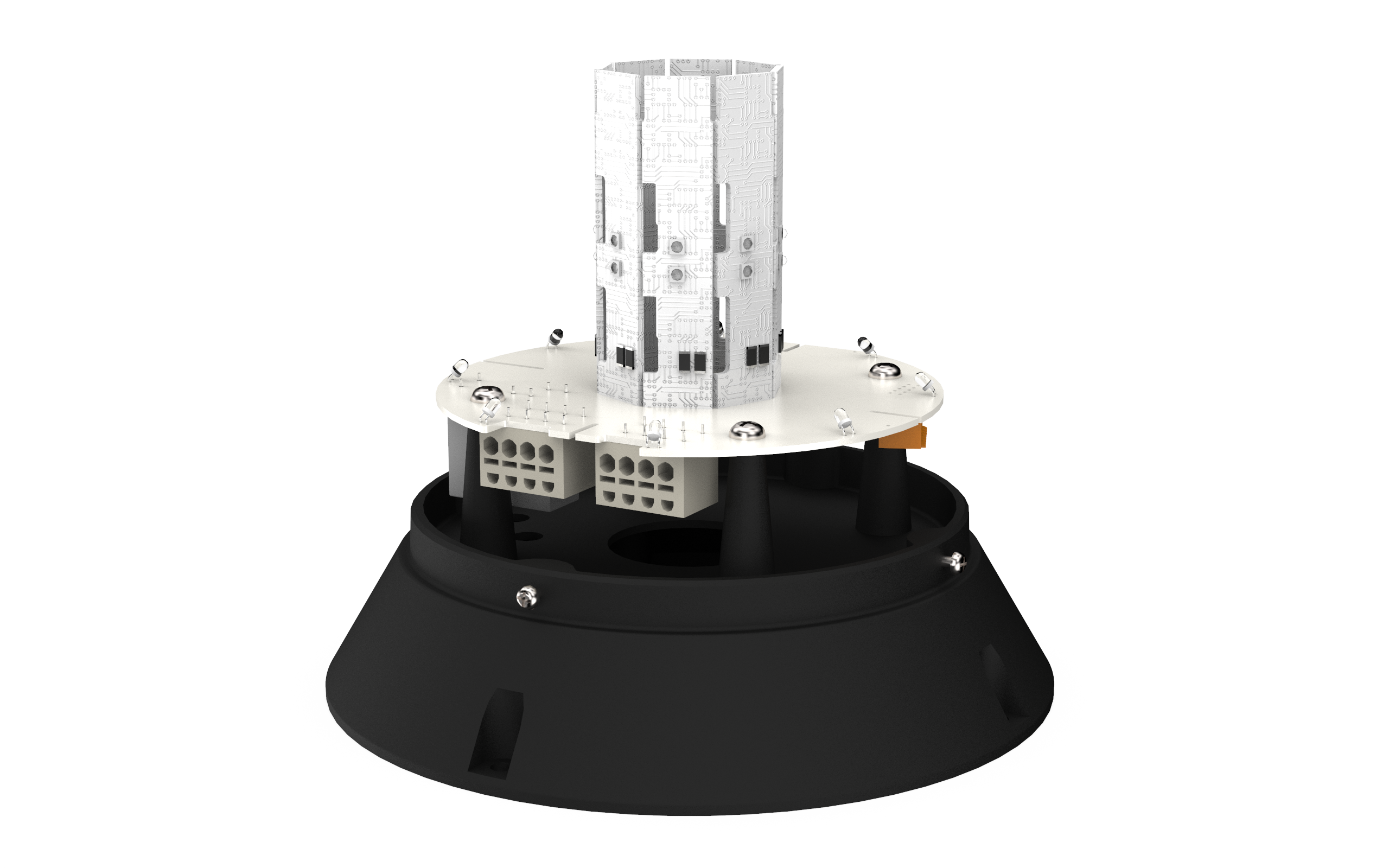

TECHNICAL DRAWINGS
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
![PMF LED Flex Multi Light]( "PMF LED Flex Multi Light")
Technical Drawings
Technical Drawings
DOWNLOADS
Downloads
| Description | Language | Type | Size | Link |
|---|---|---|---|---|
| 3D-model_STEP_PMF_Bracket | German | ZIP | 171.17 KB | Download |
| EAC_Certificate_Signaling | Englisch | 293.12 KB | Download | |
| EAC_Certificate_Signaling | German | 293.12 KB | Download | |
| Manual_PMF_LED_Flex | German | 621.84 KB | Download | |
| 3D-model_IGS_PMF_Bracket | German | ZIP | 310.47 KB | Download |
| 3D-model_STEP_PMF_Bracket | Englisch | ZIP | 171.17 KB | Download |
| 3D-model_SAT_PMF_Bracket | Englisch | ZIP | 258.02 KB | Download |
| 3D-model_IGS_PMF_Bracket | Englisch | ZIP | 310.47 KB | Download |
| Product_Sheet_DE_PMF_LEDFLEX | German | 433.37 KB | Download | |
| 3D-model_SAT_PMF_Bracket | German | ZIP | 258.02 KB | Download |
| Manual_PMF_LED_Flex | Englisch | 621.84 KB | Download | |
| Product_Sheet_EN_PMF_LEDFLEX | Englisch | 431.79 KB | Download |
