PMF LED-HI Multi Light
12, 24 V DC, LED, Amber,
Product number:
21155634006
Extremely bright all-round LED light with amber lens and Fresnel optics
- 3 different signal modes adjustable: blinking light, flashing light, rotating mirror effect
- standard with inrush current limitation and wide-range power supply 10 - 30 V DC
- for signalling hazardous conditions in safety-relevant applications such as process and plant safety
- low power consumption, high reliability and long service life thanks to the use of state-of-the-art electronic components - without replacing mechanical or electrical wear parts
- up to 2 of 4 quadrants can be switched off, energy-saving and for directional signalling
- various mounting options - directly with enclosed flat gasket (DM) or with a stainless steel bracket (WM)
- 315 cd, automatically reducible (day/night operation)
- Service life of light source: > 50000h
- Maximum viewing distance: 411 m
- Protection class: IP 55 (vertical mounting)
- Dimensions: 177 mm diameter x 185 mm (depending on the mounting method)
- Operating temperature: -40C - +55C
TECHNICAL DATA
Technical Data
- Signaling area (L | W | H) m
- 30,4 m | 30,4 m | 12 m
- Signaling area width m
- 30,4 m
- Signaling area height m
- 12 m
- Signaling area length m
- 30,4 m
- Lense Colour
- Amber
- Housing Colour
- RAL 9011
- Voltage Range (DC) V
- 10,0-30 V DC
- Rated Voltage(s) (DC) V
- 12, 24 V DC
- Type of Current
- DC
- Operating Temp. °C
- -40 °C ... +55 °C
- IP Protection System
- 55
- Housing material
- Acrylonitrile Butadiene Styrene (ABS)
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption A
- 0,8 A
- Lamp Type
- LED
- Operating Mode
- Blinking Light, Flashing Light, Rotating Light
- Light Intensity cd
- 220 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D) mm
- 185 mm | 177 mm | 177 mm
- Weight (without packaging) kg
- 0,8 kg
- ETIM-Class
- EC002975
- Signaling area (L | W | H)
- 99.74 ft. | 99.74 ft. | 39.37 ft.
- Signaling area width
- 99.74 ft.
- Signaling area height
- 39.37 ft.
- Signaling area length
- 99.74 ft.
- Lense Colour
- Amber
- Housing Colour
- RAL 9011
- Voltage Range (DC) V
- 10,0-30 V DC
- Rated Voltage(s) (DC) V
- 12, 24 V DC
- Type of Current
- DC
- Operating Temperature
- -40 °F ... +131 °F
- IP Protection System
- 55
- Housing material
- Acrylonitrile Butadiene Styrene (ABS)
- El. Protection Class
- 2
- Max. Relative Humidity
- 90 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.8 A
- Lamp Type
- LED
- Operating Mode
- Blinking Light, Flashing Light, Rotating Light
- Light Intensity cd
- 220 cd
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Dimensions (H | W | D)
- 7.28 in. | 6.97 in. | 6.97 in.
- Weight (without packaging)
- 1.76 lbs
- ETIM-Class
- EC002975
Technical Data

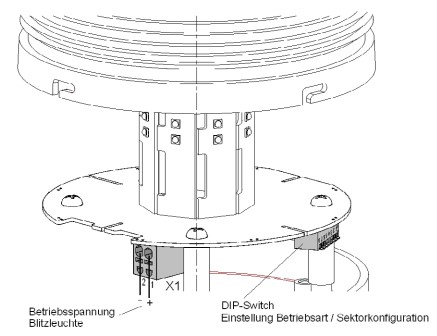

TECHNICAL DRAWINGS
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
![PMF LED-HI Multi Light]( "PMF LED-HI Multi Light")
Technical Drawings
Technical Drawings
MULTICAD DATA
Multicad Data
ACCESSORIES
Accessories
Recommended Accessories for PMF LED-HI Multifunction Light
Accessories
Recommended Accessories for PMF LED-HI Multifunction Light
DOWNLOADS
Downloads
| Description | Language | Type | Size | Link |
|---|---|---|---|---|
| Product_Sheet_EN_PMF_LED_HI | Englisch | 463.13 KB | Download | |
| 3D-model_SAT_PMF_Direct | German | ZIP | 363.99 KB | Download |
| 3D-model_STEP_PMF_direct | German | ZIP | 235.72 KB | Download |
| Product_Sheet_DE_PMF_LED_HI | German | 340.74 KB | Download | |
| EAC_Certificate_Signaling | German | 293.12 KB | Download | |
| 3D-model_STEP_PMF_direct | Englisch | ZIP | 235.72 KB | Download |
| EAC_Certificate_Signaling | Englisch | 293.12 KB | Download | |
| 3D-model_IGS_PMF_Direct | Englisch | ZIP | 437.09 KB | Download |
| Manual_PMF-LED-HI | German | 882.26 KB | Download | |
| 3D-model_IGS_PMF_Direct | German | ZIP | 437.09 KB | Download |
| Manual_PMF-LED-HI | Englisch | 882.26 KB | Download | |
| 3D-model_SAT_PMF_Direct | Englisch | ZIP | 363.99 KB | Download |
| PFA.21155634006 | German | tables.type.file_edz | 464.57 KB | Download |
| PFA.21155634006 | Englisch | tables.type.file_edz | 464.57 KB | Download |
