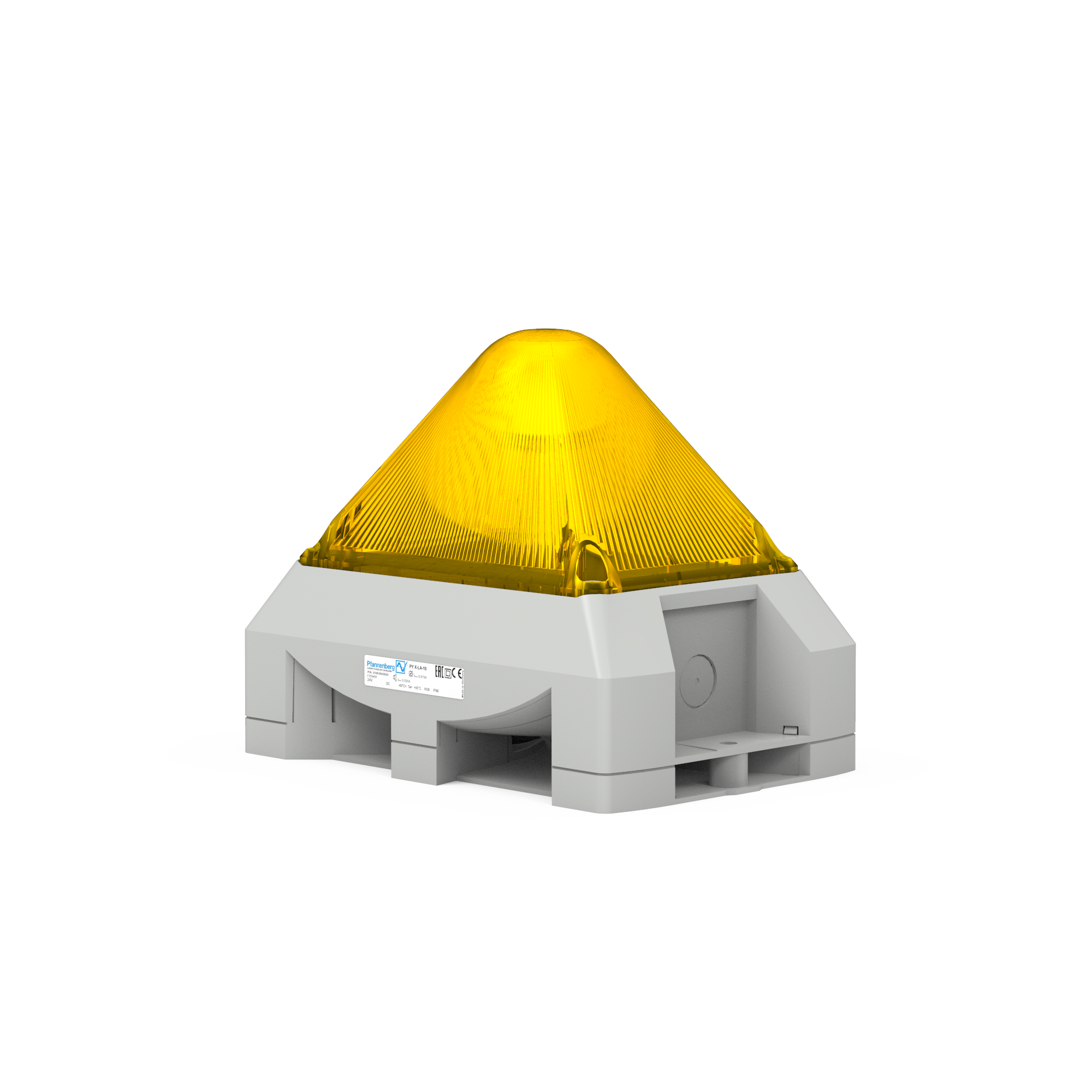

Pyra PY X-LA-15 Flash/Sound-combi
230 V AC, XENON, Yellow,
Product number:
21565103055
- Powerful flashing light sounder with yellow lens and grey base in an elegant pyramid design
- The PYRA series flashing light sounder is not only adaptable to many applications, but it also stands out due to its safe and simple mounting
- Light and sounder can be controlled separately
- The sound pressure level can be reduced and the flashing frequency can be adjusted (0.1/0.5/0.75/1 Hz)
- Flashing lights can be operated in full synchronisation with each other

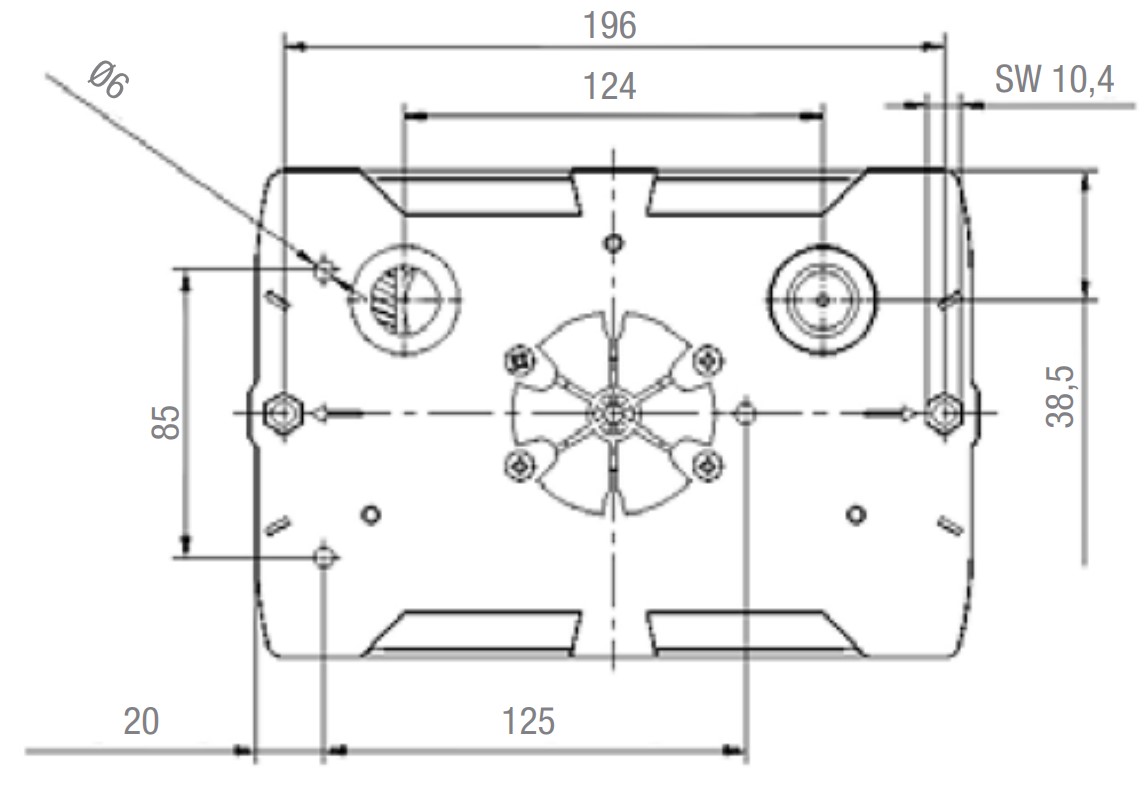

- Installation options with external lugs or internal holes
- Impact-proof lens made of polycarbonate. Stabilisation of the XENON tubes for increased resistance to shock and vibration
- Service life: after 8 million flashes, still 70% light emission

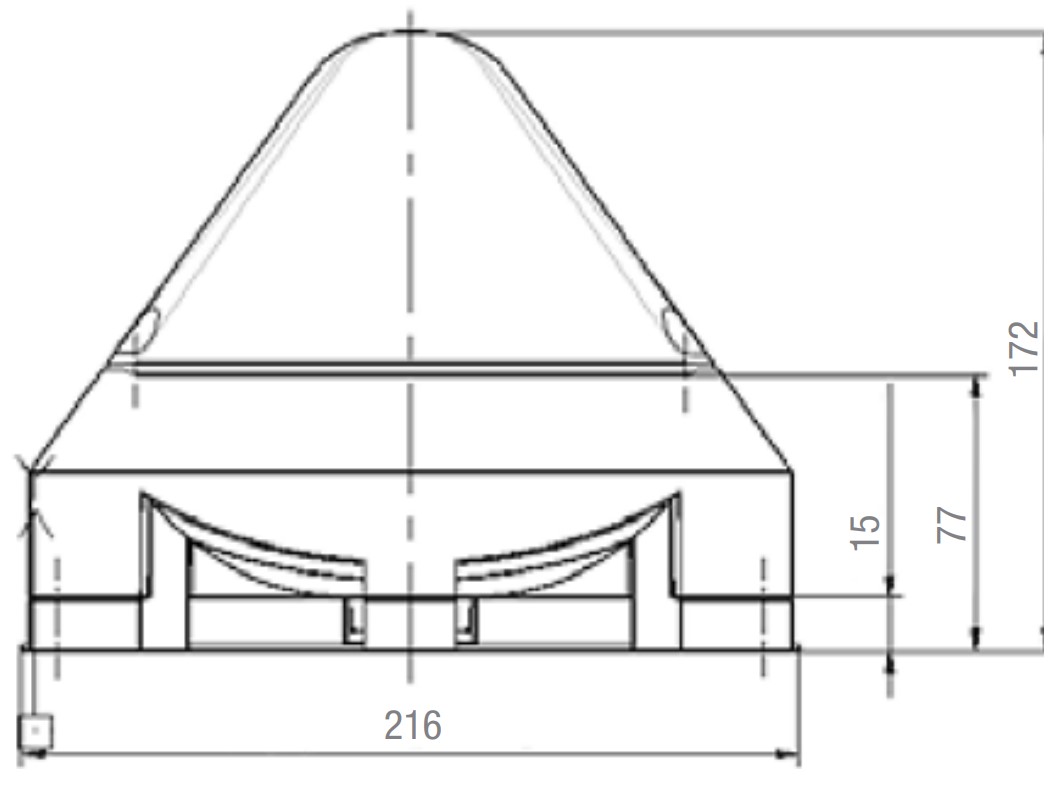

- Dimensions: LxWxH: 144 x 216 x 172mm
- Maximum visibility: 320m
- Housing colours: grey (RAL 7035), red (RAL 3000) or white (RAL 9003)
- 7 lens colours: clear, white, yellow, amber, red, green, blue
- Ambient temperatures: -40C to +55C. Suitable for all areas of operation and applications
- Electrical contact only in assembled base part. Wires can be connected according to the 'junction box' principle. No '3-hand' mounting (device - screwdriver - braid). No tension / pressure on the clamping unit, no 'pinching' of wires
- 10 year warranty
TECHNICAL DATA
Technical Data
- Signaling area (L | W | H) m
- 14,7 m | 23,5 m | 22,4 m
- Signaling area width m
- 23,5 m
- Signaling area height m
- 22,4 m
- Signaling area length m
- 14,7 m
- Lense Colour
- Yellow
- Housing Colour
- RAL 7035
- Voltage Range (AC) V
- 187-255 V AC
- Rated Voltage(s) (AC) V
- 230 V AC
- Type of Current
- AC
- Operating Temp. °C
- -40 °C ... +55 °C
- IP Protection System
- 66
- NEMA
- 4/4X
- Impact-Proof Housing
- IK08
- Housing material
- PC / ABS
- Max. Relative Humidity
- 90 %
- El. Protection Class
- 2
- Duty Cycle
- 100 %
- Max. Current Consumption A
- 0,17 A
- Lamp Type
- XENON
- Operating Mode
- Flashing Light
- Light Intensity cd
- 150 cd
- Flash Energy J
- 15 J
- Flash Rate Hz
- 1 Hz
- Max. Viewing Distance m
- 283,88 m
- Max. Sound dB(A)
- 103 dB(A)
- Sound Level Reduction dB
- max. -25 dB
- Number of Alarm Tones
- 8
- Number of external selectable tones
- 1
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no

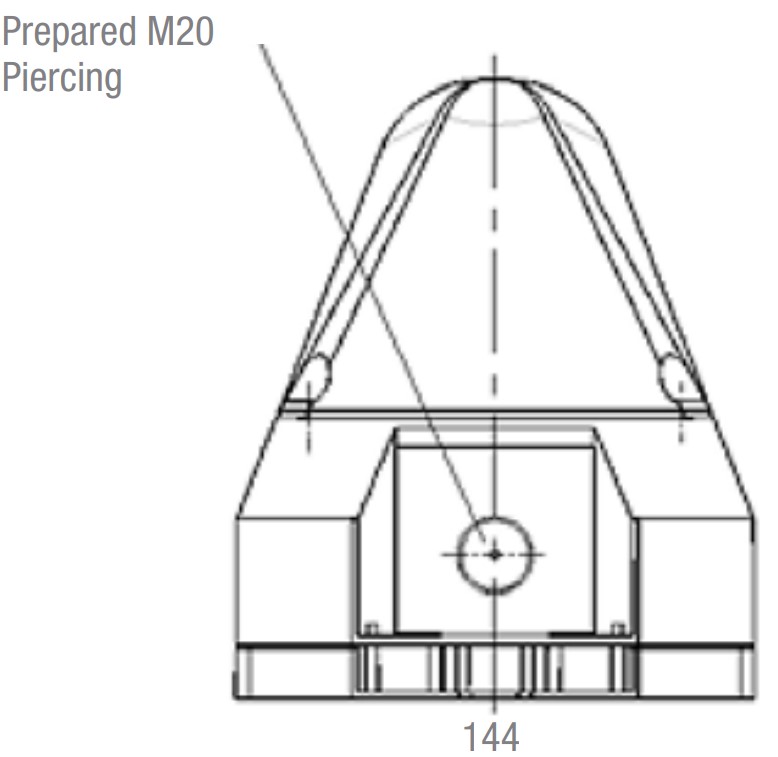

- Cable entry
- 4x M20 (prepared)
- Connecting terminals
- 0.14 - 2.5mm² fine wire, AWG 24 - AWG 14 (stranded)
- Dimensions (H | W | D) mm
- 172 mm | 216 mm | 144 mm
- Weight (without packaging) kg
- 0,9 kg
- ETIM-Class
- EC000195
- Signaling area (L | W | H)
- 48.23 ft. | 77.1 ft. | 73.5 ft.
- Signaling area width
- 77.1 ft.
- Signaling area height
- 73.5 ft.
- Signaling area length
- 48.23 ft.
- Lense Colour
- Yellow
- Housing Colour
- RAL 7035
- Voltage Range (AC) V
- 187-255 V AC
- Rated Voltage(s) (AC) V
- 230 V AC
- Type of Current
- AC
- Operating Temperature
- -40 °F ... +131 °F
- IP Protection System
- 66
- NEMA
- 4/4X
- Impact-Proof Housing
- IK08
- Housing material
- PC / ABS
- Max. Relative Humidity
- 90 %
- El. Protection Class
- 2
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.17 A
- Lamp Type
- XENON
- Operating Mode
- Flashing Light
- Light Intensity cd
- 150 cd
- Flash Energy J
- 15 J
- Flash Rate Hz
- 1 Hz
- Max. Viewing Distance
- 931.38 ft.
- Max. Sound dB(A)
- 103 dB(A)
- Sound Level Reduction dB
- max. -25 dB
- Number of Alarm Tones
- 8
- Number of external selectable tones
- 1
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- no
- Cable entry
- 4x M20 (prepared)
- Connecting terminals
- 0.14 - 2.5mm² fine wire, AWG 24 - AWG 14 (stranded)
- Dimensions (H | W | D)
- 6.77 in. | 8.5 in. | 5.67 in.
- Weight (without packaging)
- 1.98 lbs
- ETIM-Class
- EC000195
