Quadro F12 Flashing Light, SIL/Pl
24 V DC, XENON, Yellow,
Product number:
21041803601
-13J Flashing light in a very resistant housing with yellow lens
- For use in safety instrumented systems (SIS) up to SIL 2 / PLd
- SIL - Safety Integrity Level / PL Performance Level
- To signal dangerous situations in safety-relevant applications such as process and plant safety, e.g. in the event of
- leaks / gas warning and high-pressure / overfilling
- and machine safety, e.g. as start-up warning, muting indication or stop delay warning
- Due to the self-monitoring system integrated in the devices, the regular inspections of the warning devices required by standards are ensured
- Mounted via concealed interior holes or external lugs, fast, flexible and secure
- Outstanding mechanical strength with IP 66, IP 67 and IK 08
- Whether in the open air, in a hailstorm or when high pressure cleaning systems are used, the Quadro remains sealed and signals reliably
- Housing and lens are made of impact-proof polycarbonate
- Service life: after 12 million flashes, still 70% light emission
- Dimensions: LxWxH 130 x 130 x 130mm
- Operating temperature: -40C - +55C
- Maximum visibility: 348m
- 7 lens colours: clear, white, yellow, orange, red, green, blue
- 10 year warranty
- The initial current is limited to <7 A / 0,15ms (230V AC), <5 A / 2ms (24V DC) to protect the connecting relay
TECHNICAL DATA
Technical Data
- Signaling area (L | W | H) m
- 14,2 m | 21,3 m | 21,2 m
- Signaling area width m
- 21,3 m
- Signaling area height m
- 21,2 m
- Signaling area length m
- 14,2 m
- Lense Colour
- Yellow
- Housing Colour
- RAL 7035
- Voltage Range (DC) V
- 18-30 V DC
- Rated Voltage(s) (DC) V
- 24 V DC
- Type of Current
- DC
- Operating Temp. °C
- -30 °C ... +55 °C
- IP Protection System
- 66/67
- Housing material
- Polycarbonate (PC)
- El. Protection Class
- 2
- Max. Relative Humidity
- 95 %
- Duty Cycle
- 100 %
- Max. Current Consumption A
- 0,7 A
- Lamp Type
- XENON
- Operating Mode
- Flashing Light
- Light Intensity cd
- 178 cd
- Flash Energy J
- 13 J
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- yes
- Dimensions (H | W | D) mm
- 130 mm | 130 mm | 130 mm
- Weight (without packaging) kg
- 0,6 kg
- ETIM-Class
- EC001333
- Signaling area (L | W | H)
- 46.59 ft. | 69.88 ft. | 69.56 ft.
- Signaling area width
- 69.88 ft.
- Signaling area height
- 69.56 ft.
- Signaling area length
- 46.59 ft.
- Lense Colour
- Yellow
- Housing Colour
- RAL 7035
- Voltage Range (DC) V
- 18-30 V DC
- Rated Voltage(s) (DC) V
- 24 V DC
- Type of Current
- DC
- Operating Temperature
- -22 °F ... +131 °F
- IP Protection System
- 66/67
- Housing material
- Polycarbonate (PC)
- El. Protection Class
- 2
- Max. Relative Humidity
- 95 %
- Duty Cycle
- 100 %
- Max. Current Consumption
- 0.7 A
- Lamp Type
- XENON
- Operating Mode
- Flashing Light
- Light Intensity cd
- 178 cd
- Flash Energy J
- 13 J
- Flash Rate Hz
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12-connection
- no
- Monitored
- yes
- Dimensions (H | W | D)
- 5.12 in. | 5.12 in. | 5.12 in.
- Weight (without packaging)
- 1.32 lbs
- ETIM-Class
- EC001333
Technical Data

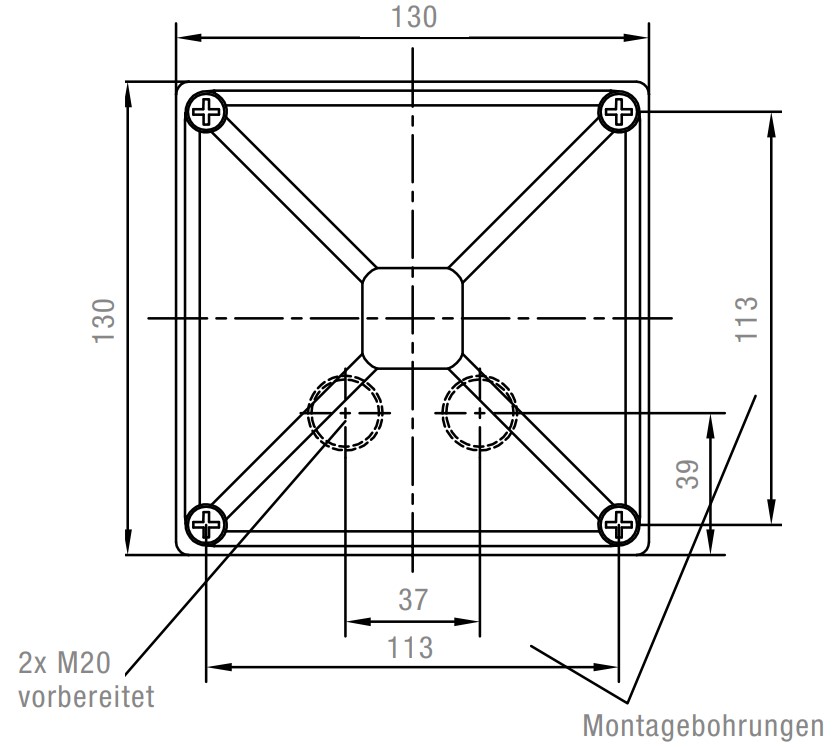

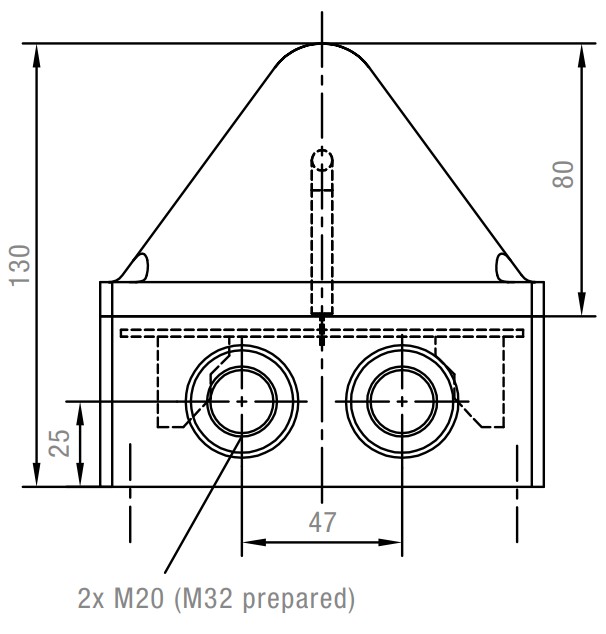

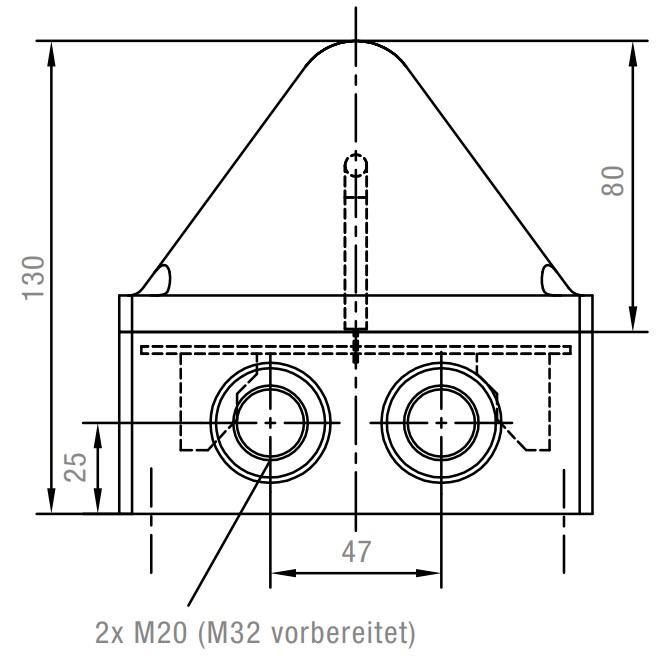

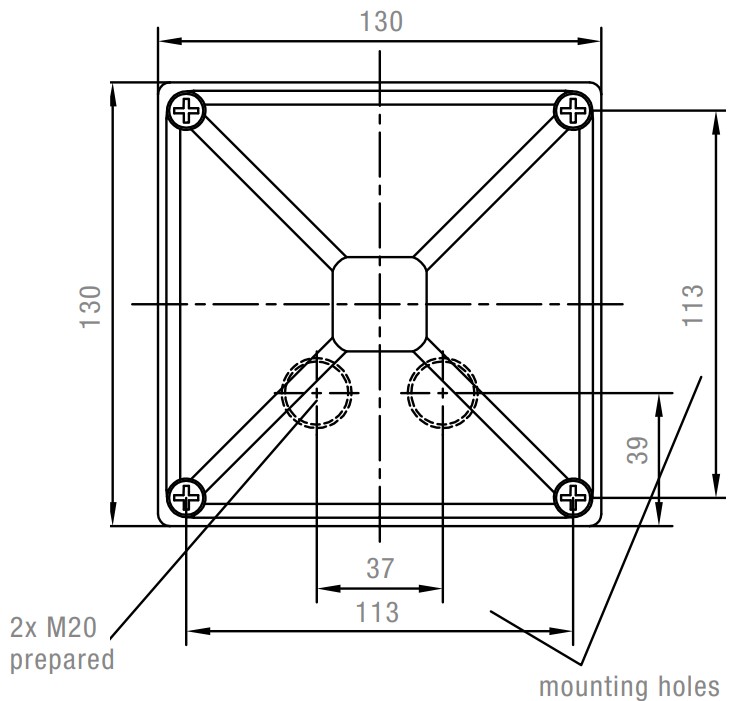

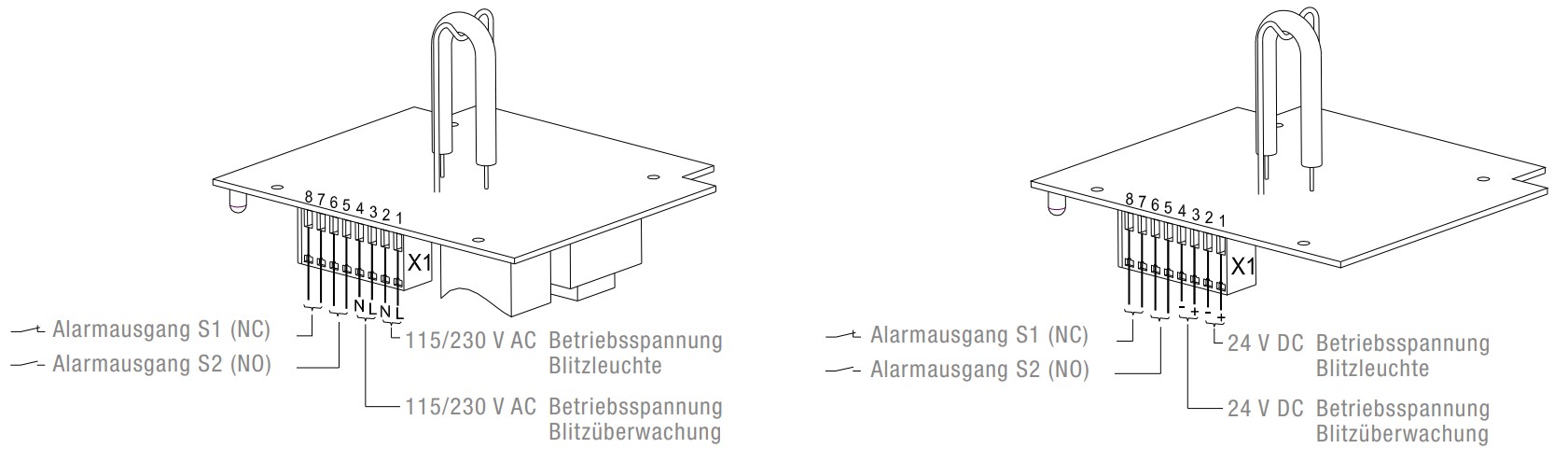

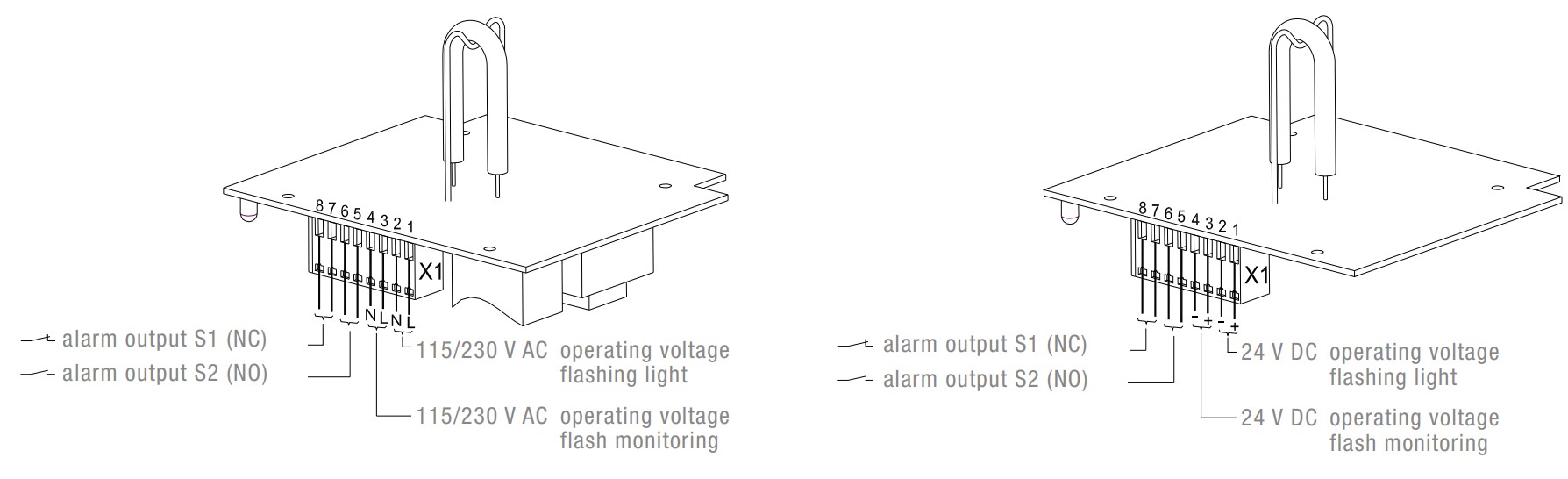

TECHNICAL DRAWINGS
