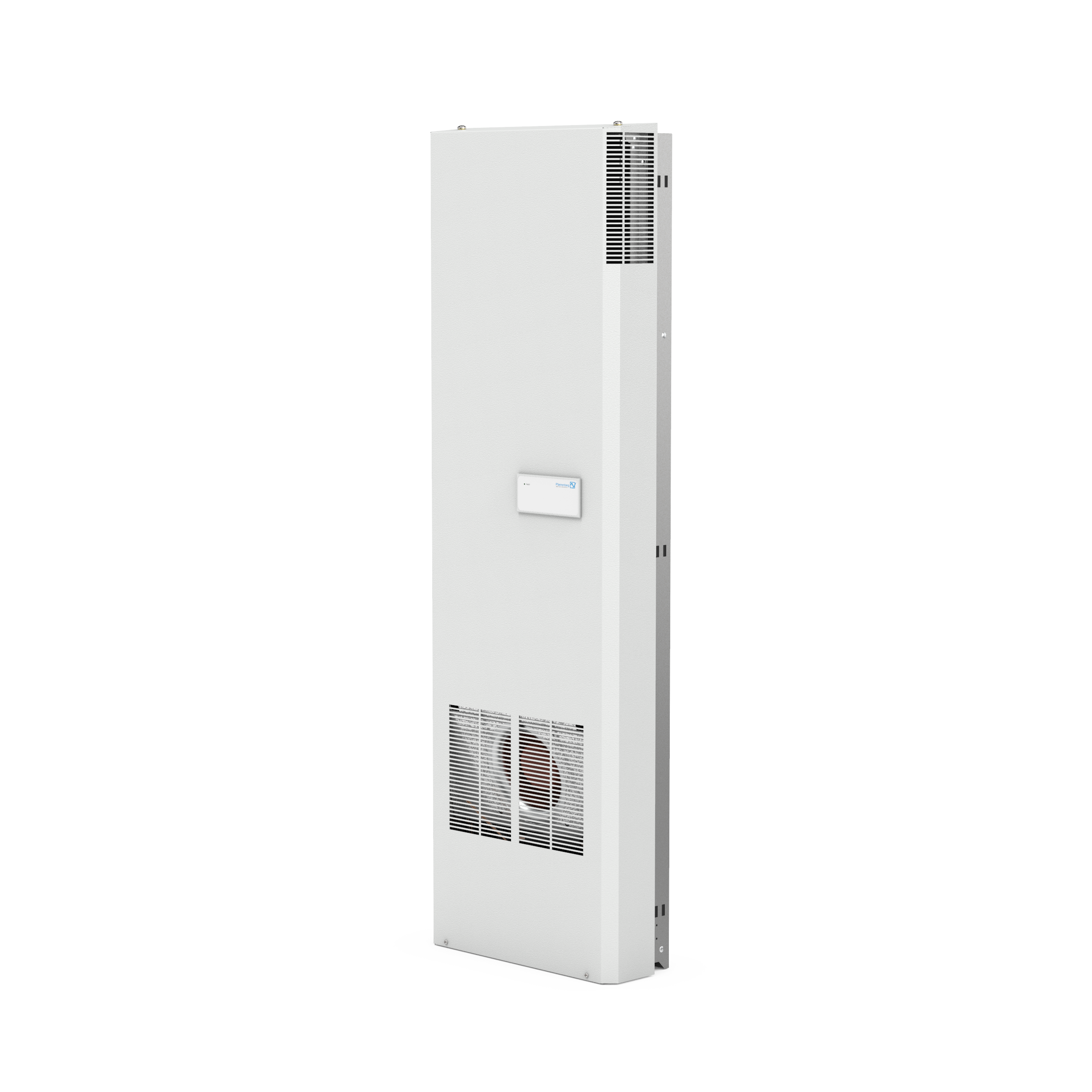

DTI 9341 400V Partially Recessed Cooling Unit

DTI 9341 400V Partially Recessed Cooling Unit

AC 400 / 460 V 2~, 1.500 W, Standard Controller

Product number: 13269349055

more less

The 9000 series cooling units are characterized by their tried and tested design. The predecessor series to the 6000 eCool family is ideal for simple, standard applications. Due to the partially recessed mounting in the side or door, they support to kept the transport and escape routes clear.

The DTI (Partially recessed) version of the cooling units can be mounted - tool-free, without drilling, without adhering - within 3 minutes on the side or in the door of the enclosure.

The advantages of the series at a glance:

Cooling units in proven industrial version
Suitable for use with a door width of 400 mm
within the electrical enclosure due to long passage of air, therefore hot spots are eliminated
large distance between intake and exhaust vents, safe circulation
integrated fault and door contact
100% cut-out compatible with the 6000 eCool family
The wide fin spacing in the external heat exchanger extends the service intervals
Equipped with a standard controller, the unit meets all basic requirements

Description

The DTI (Partially recessed) version of the cooling units can be mounted - tool-free, without drilling, without adhering - within 3 minutes on the side or in the door of the enclosure.

The advantages of the series at a glance:

Cooling units in proven industrial version
Suitable for use with a door width of 400 mm
within the electrical enclosure due to long passage of air, therefore hot spots are eliminated
large distance between intake and exhaust vents, safe circulation
integrated fault and door contact
100% cut-out compatible with the 6000 eCool family
The wide fin spacing in the external heat exchanger extends the service intervals
Equipped with a standard controller, the unit meets all basic requirements

TECHNICAL DATA

Technical Data

Rated voltage V ±10 %: AC 400 / 460 V 2~
Rated frequency Hz ±1 %: 50 Hz | 60 Hz
Cooling capacity W: 1.500 W
Cooling capacity according to EN 14511 (A35/A50) W: 1.200 W
Power consumption (A35/A35) W: 840 W | 1.080 W
Starting current (A35/A35) A: 12,9 A | 12 A
Energy efficiency ratio (EER): 1,79
Unimpeded internal airflow (free flow) m³/h: 460 m3/h
Unimpeded external airflow (free flow) m³/h: 660 m3/h
Controller: Standard Controller
Type of fuse | Pre fuse: gG | 4 A
Type of connection: spring-type terminal included with plug
Noise level according to EN ISO 3741 dB(A): <62 dB(A) | <62 dB(A)
Noise level according to EN ISO 3741 (50Hz | 60Hz) dB(A): <62 dB(A) | <62 dB(A)
Ambient temperature °C: +15 °C ... +55 °C
Control range (adjustable) °C: +25 °C ... +45 °C
Refrigerant (type | amount): R134a | 500 g
Condensate management: condensate drain, integrated condensate evaporation system optional
IP Protection: IP 54
Protection system according to EN 60529 towards the surroundings: IP 34
Design housing: galvanised sheet steel
Design cover: galvanised, electrostatically powder coated (200C), stainless steel on request
Colour: RAL 7035
Mounting position: Partially Recessed
Dimensions (H | W | D) mm: 1.536 mm | 485 mm | 180 mm
Installation depth mm: 60 mm
UL-file numbers: SA10300
ETIM-Class: EC000855
Rated voltage V ±10 %: AC 400 / 460 V 2~
Rated frequency Hz ±1 %: 50 Hz | 60 Hz
Cooling capacity according to EN 14511 (A35/A35): 5,118 BTU/h
Cooling capacity according to EN 14511 (A35/A50): 4,095 BTU/h
Power consumption (A35/A35): 840 W | 1,080 W
Starting current (A35/A35): 12.9 A | 12 A
Energy efficiency ratio (EER): 1.79
Unimpeded internal airflow (free flow): 271 cfm
Unimpeded external airflow (free flow): 388 cfm
Controller: Standard Controller
Type of fuse | Pre fuse: gG | 4 A
Type of connection: spring-type terminal included with plug
Noise level according to EN ISO 3741 dB(A): <62 dB(A) | <62 dB(A)
Noise level according to EN ISO 3741 (50Hz | 60Hz) dB(A): <62 dB(A) | <62 dB(A)
Weight (without packaging): 121.28 lbs
Ambient temperature range: +59 °F ... +131 °F
Control range (adjustable): +77 °F ... +113 °F
Refrigerant (type | amount): R134a | 14,174.76 oz.
Condensate management: condensate drain, integrated condensate evaporation system optional
IP Protection: IP 54
Protection system according to EN 60529 towards the surroundings: IP 34
Design housing: galvanised sheet steel
Design cover: galvanised, electrostatically powder coated (200C), stainless steel on request
Colour: RAL 7035
Mounting position: Partially Recessed
Dimensions (H | W | D): 60.47 in. | 19.1 in. | 7.09 in.
Installation depth: 2.36 in.
UL-file numbers: SA10300
ETIM-Class: EC000855

Technical Data

Rated voltage V ±10 %: AC 400 / 460 V 2~
Rated frequency Hz ±1 %: 50 Hz | 60 Hz
Cooling capacity W: 1.500 W
Cooling capacity according to EN 14511 (A35/A50) W: 1.200 W
Power consumption (A35/A35) W: 840 W | 1.080 W
Starting current (A35/A35) A: 12,9 A | 12 A
Energy efficiency ratio (EER): 1,79
Unimpeded internal airflow (free flow) m³/h: 460 m3/h
Unimpeded external airflow (free flow) m³/h: 660 m3/h
Controller: Standard Controller
Type of fuse | Pre fuse: gG | 4 A
Type of connection: spring-type terminal included with plug
Noise level according to EN ISO 3741 dB(A): <62 dB(A) | <62 dB(A)
Noise level according to EN ISO 3741 (50Hz | 60Hz) dB(A): <62 dB(A) | <62 dB(A)
Ambient temperature °C: +15 °C ... +55 °C
Control range (adjustable) °C: +25 °C ... +45 °C
Refrigerant (type | amount): R134a | 500 g
Condensate management: condensate drain, integrated condensate evaporation system optional
IP Protection: IP 54
Protection system according to EN 60529 towards the surroundings: IP 34
Design housing: galvanised sheet steel
Design cover: galvanised, electrostatically powder coated (200C), stainless steel on request
Colour: RAL 7035
Mounting position: Partially Recessed
Dimensions (H | W | D) mm: 1.536 mm | 485 mm | 180 mm
Installation depth mm: 60 mm
UL-file numbers: SA10300
ETIM-Class: EC000855
Rated voltage V ±10 %: AC 400 / 460 V 2~
Rated frequency Hz ±1 %: 50 Hz | 60 Hz
Cooling capacity according to EN 14511 (A35/A35): 5,118 BTU/h
Cooling capacity according to EN 14511 (A35/A50): 4,095 BTU/h
Power consumption (A35/A35): 840 W | 1,080 W
Starting current (A35/A35): 12.9 A | 12 A
Energy efficiency ratio (EER): 1.79
Unimpeded internal airflow (free flow): 271 cfm
Unimpeded external airflow (free flow): 388 cfm
Controller: Standard Controller
Type of fuse | Pre fuse: gG | 4 A
Type of connection: spring-type terminal included with plug
Noise level according to EN ISO 3741 dB(A): <62 dB(A) | <62 dB(A)
Noise level according to EN ISO 3741 (50Hz | 60Hz) dB(A): <62 dB(A) | <62 dB(A)
Weight (without packaging): 121.28 lbs
Ambient temperature range: +59 °F ... +131 °F
Control range (adjustable): +77 °F ... +113 °F
Refrigerant (type | amount): R134a | 14,174.76 oz.
Condensate management: condensate drain, integrated condensate evaporation system optional
IP Protection: IP 54
Protection system according to EN 60529 towards the surroundings: IP 34
Design housing: galvanised sheet steel
Design cover: galvanised, electrostatically powder coated (200C), stainless steel on request
Colour: RAL 7035
Mounting position: Partially Recessed
Dimensions (H | W | D): 60.47 in. | 19.1 in. | 7.09 in.
Installation depth: 2.36 in.
UL-file numbers: SA10300
ETIM-Class: EC000855

TECHNICAL DRAWINGS

Technical Drawings

K: 1510 mm
L: 450 mm
X: 485 mm
Y: 1536 mm
Z1: 120 mm
Z2: 60 mm
K: 59,45 in
L: 17,72 in
X: 19,09 in
Y: 60,47 in
Z1: 4,72 in
Z2: 2,36 in

DTI variants partially recessed by 60 mm after installation

Technical Drawings

K: 1510 mm
L: 450 mm
X: 485 mm
Y: 1536 mm
Z1: 120 mm
Z2: 60 mm
K: 59,45 in
L: 17,72 in
X: 19,09 in
Y: 60,47 in
Z1: 4,72 in
Z2: 2,36 in

DTI variants partially recessed by 60 mm after installation
