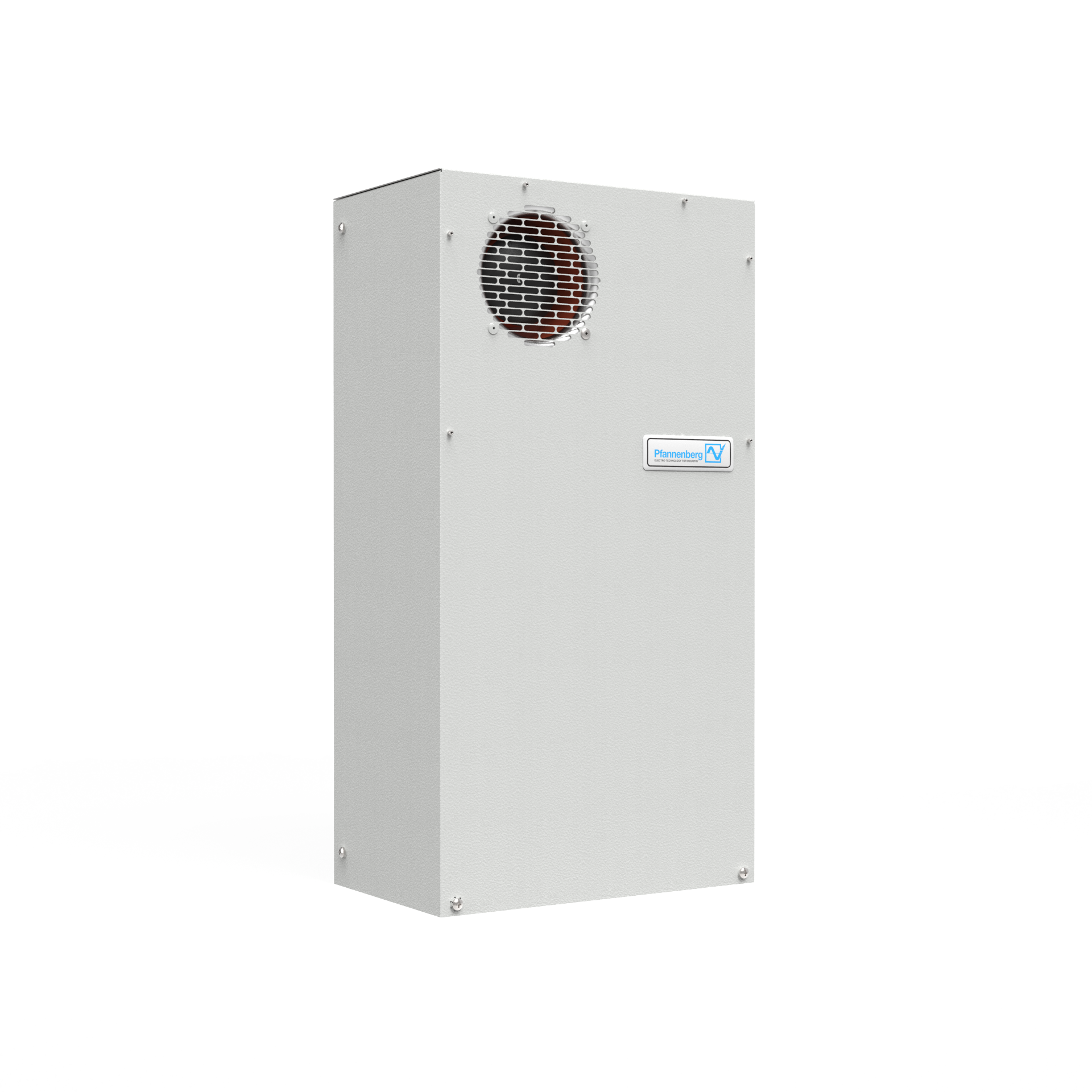

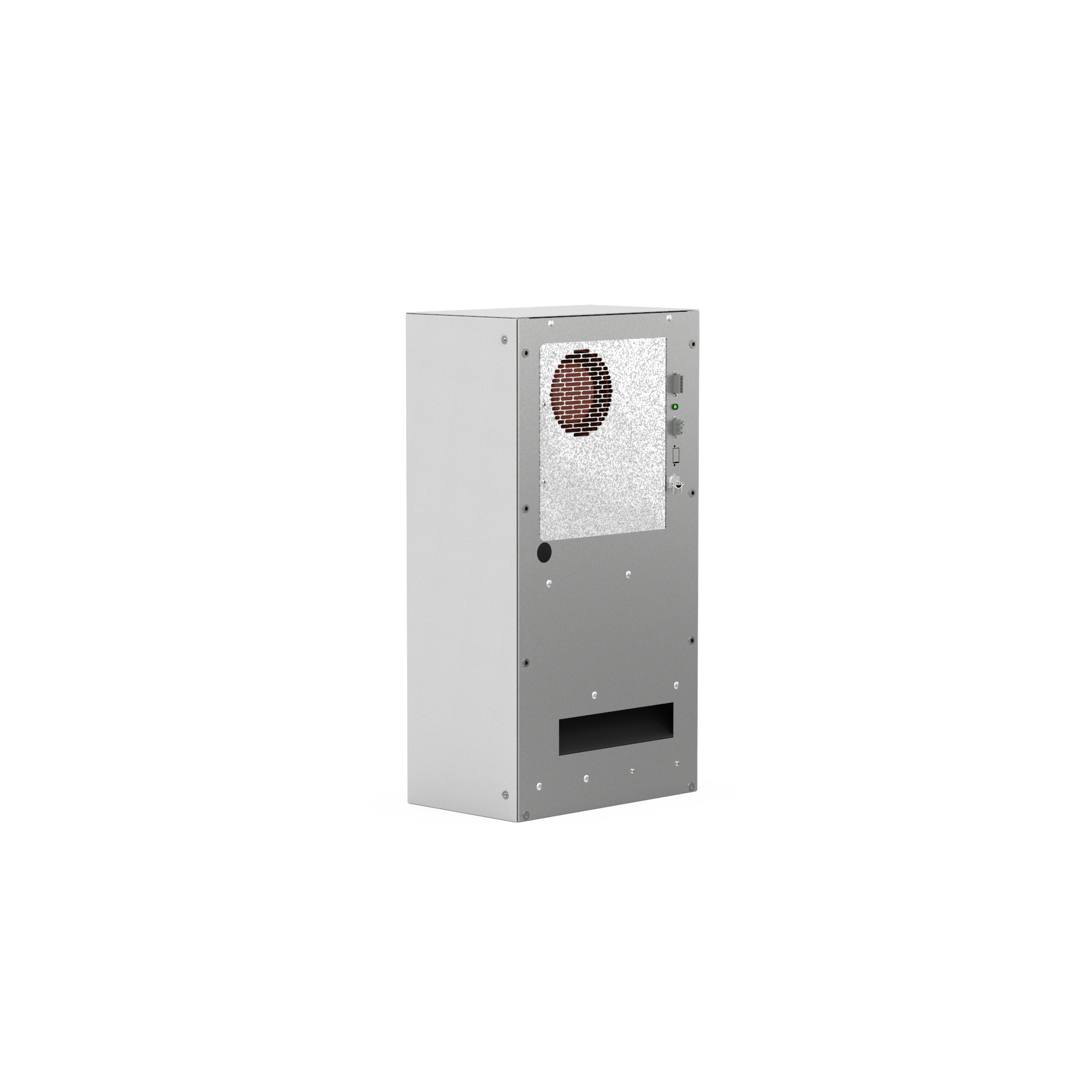

Technical Data


Technical Data
Rated voltage V ±10 %
AC 460 2/1~
Rated frequency Hz ±1 %
50 Hz | 60 Hz
Cooling capacity W
1.200 W
Cooling capacity according to EN 14511 (A35/A50) W
600 W
Energy efficiency ratio (EER)
1
Unimpeded external airflow (free flow) m³/h
150 m3/h
Controller
Standard Controller
Type of fuse | Pre fuse
CC | 10 A
Type of connection
spring-type terminal
Ambient temperature °C
+15 °C ... +55 °C
Control range (adjustable) °C
+25 °C ... +45 °C
Refrigerant (type | amount)
R134a | 400 g
Condensate management
active condensate evaporation system with safety overflow
IP Protection
IP 54
NEMA Protection
12
Protection system according to EN 60529 towards the surroundings
IP 34
Design housing
electrostatically powder coated
Design cover
galvanized sheet steel
Colour
RAL 7035
Mounting position
Side Mount
Dimensions (H | W | D) mm
749 mm | 394 mm | 237 mm
ETIM-Class
EC000855
Rated voltage V ±10 %
AC 460 2/1~
Rated frequency Hz ±1 %
50 Hz | 60 Hz
Cooling capacity according to EN 14511 (A35/A35)
4,100 BTU/h
Cooling capacity according to EN 14511 (A35/A50)
2,047 BTU/h
Energy efficiency ratio (EER)
1
Unimpeded external airflow (free flow)
112 cfm
Controller
Standard Controller
Type of fuse | Pre fuse
CC | 10 A
Type of connection
spring-type terminal
Weight (without packaging)
84 lbs
Ambient temperature range
+59 °F ... +131 °F
Control range (adjustable)
+77 °F ... +113 °F
Refrigerant (type | amount)
R134a | 14.1 oz.
Condensate management
active condensate evaporation system with safety overflow
IP Protection
IP 54
NEMA Protection
12
Protection system according to EN 60529 towards the surroundings
IP 34
Design housing
electrostatically powder coated
Design cover
galvanized sheet steel
Colour
RAL 7035
Mounting position
Side Mount
Dimensions (H | W | D)
29.46 in. | 15.55 in. | 9.3 in.
ETIM-Class
EC000855

Technical Drawings

Dimensions
A
300 mm
B
310 mm
C
130 mm
D
292 mm
E
25 mm
F
228,6 mm
G
38,1 mm
H
7 mm
I
360 mm
J
265 mm
K
34 mm
L
200 mm
M
80 mm
X
395 mm
Y
748 mm
Z
294 mm
A
11,81 in
B
12,2 in
C
5,12 in
D
11,5 in
E
0,98 in
F
9 in
G
1,5 in
H
0,28 in
I
14,17 in
J
10,43 in
K
1,34 in
L
7,87 in
M
3,15 in
X
15,55 in
Y
29,45 in
Z
11,57 in

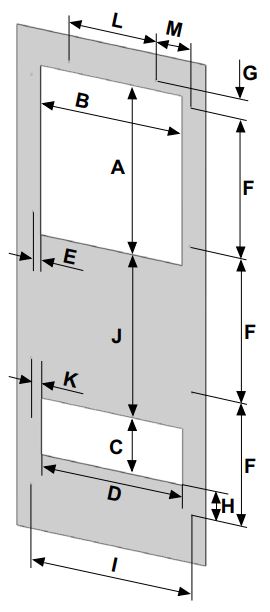

Mounting holes Ø 8 mm and cut-out radii R20

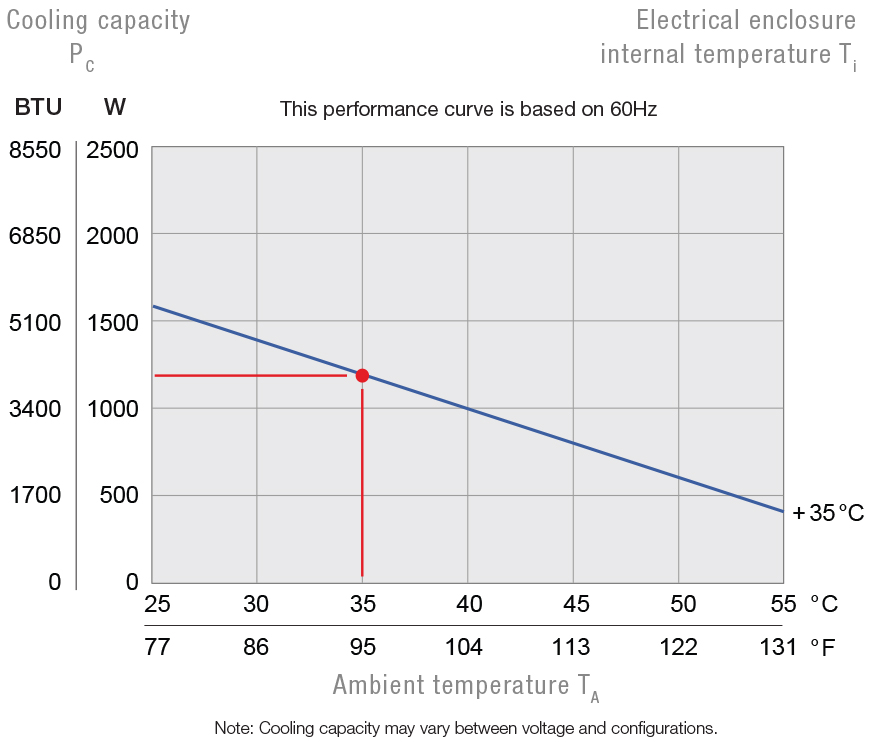

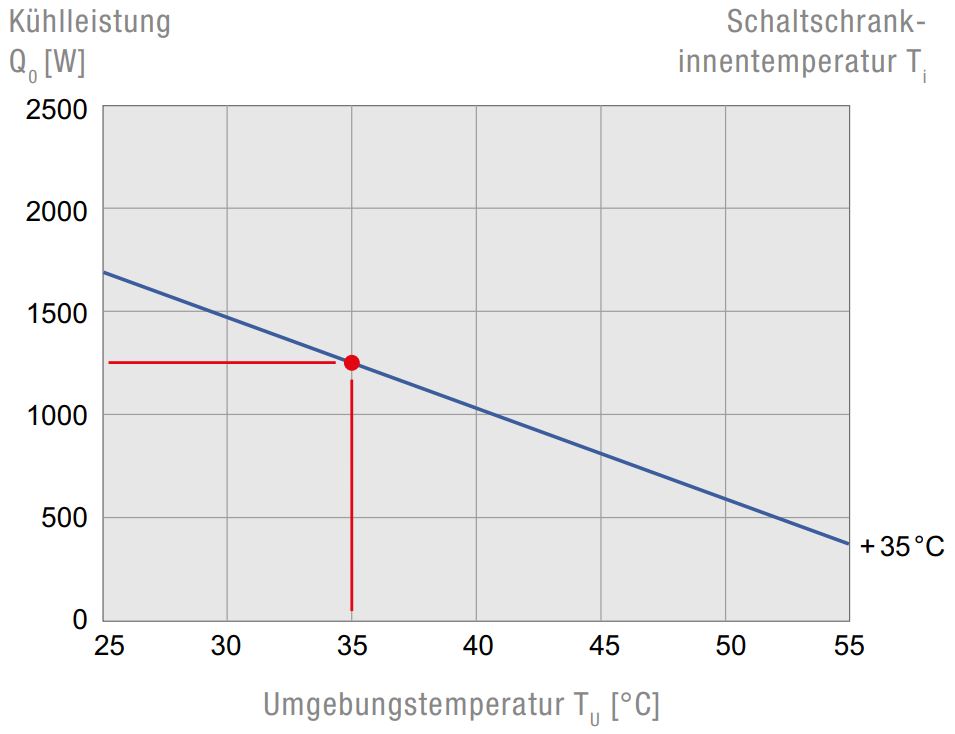

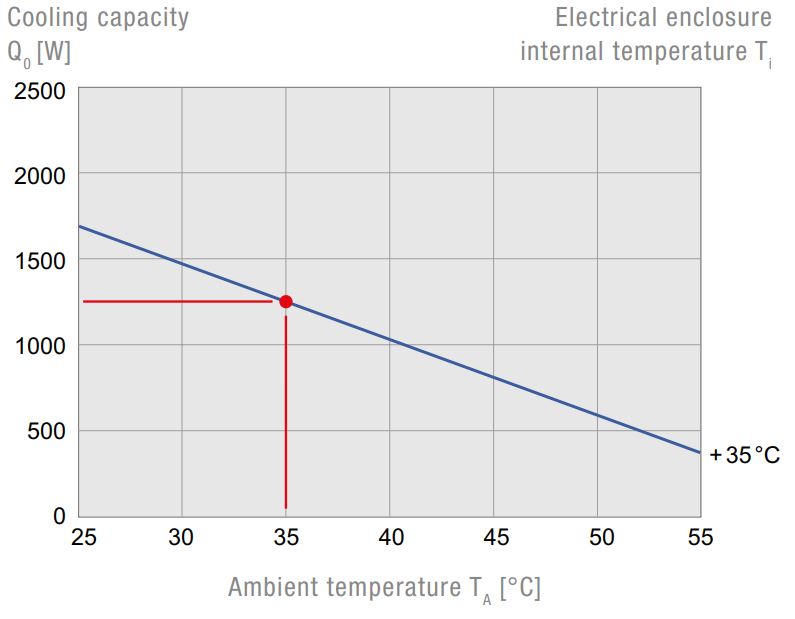

Diagrams
