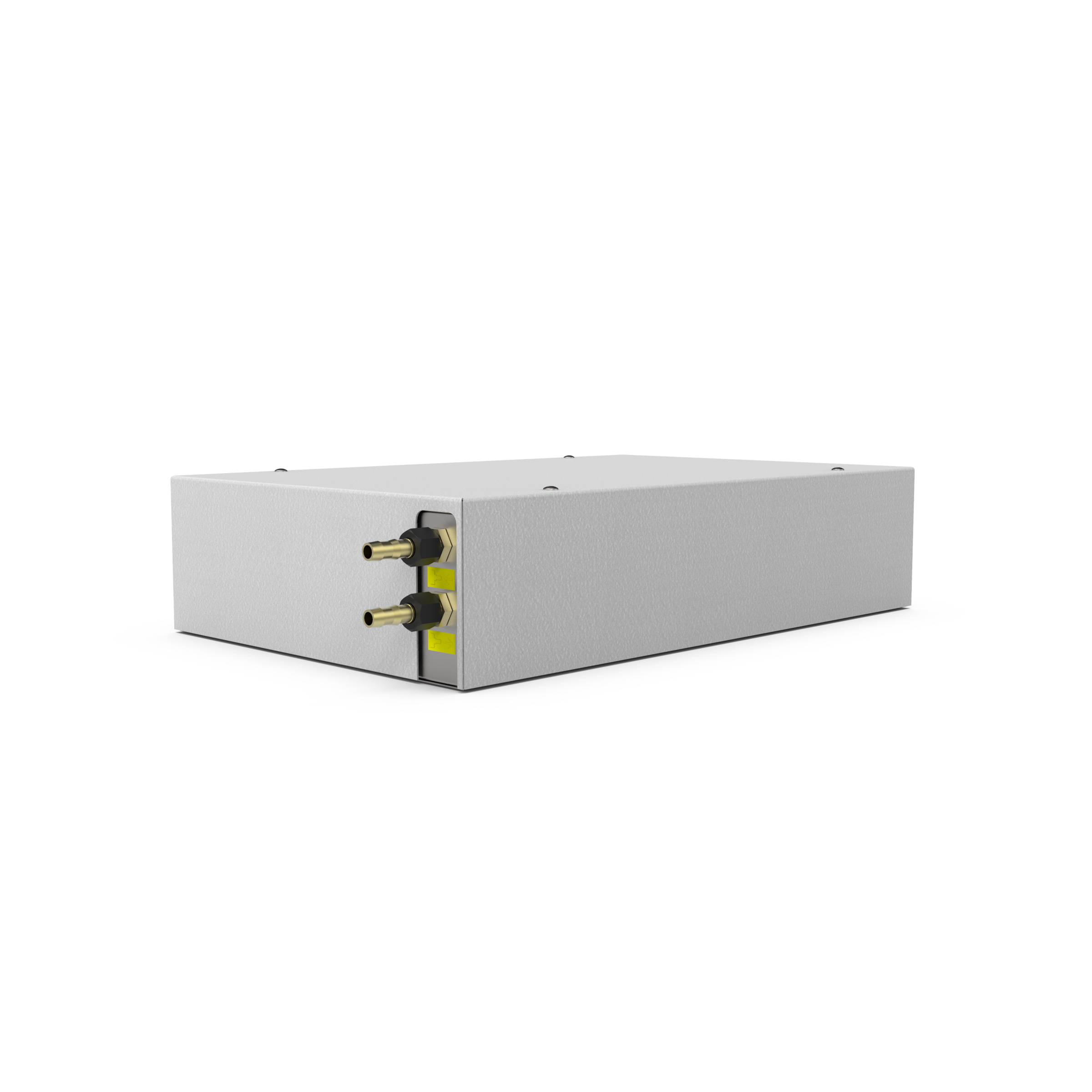

PWD 5302 230V Air/Water Heat Exchanger
AC 230 V / 230 V1~,
The use of Pfannenberg top mounted air/water heat exchangers is particularly suitable where ambient temperatures are high or the atmosphere proves to be particularly oily or aggressive. Maintenance-free operation and extremely low noise emission. Ideal application areas wherever machines or production processes are cooled by tempered water and water is thus already provided. The advantages of the series at a glance: -system-compatible with chillers -can be integrated in existing cooling circuits -integrated thermostat and solenoid valve for energy-efficient temperature control -high airflow rate and cooling capacity -any power losses that occur are not given off into the room -integrated temperature monitoring with alarm contact -usable under aggressive environmental conditions -independent from the ambient temperature at the place of installation -compact design -seal requires no elaborate reworking of the mounting cut-out -maintenance-free
Technical Data
- Rated voltage V ±10 %
- AC 230 V / 230 V1~
- Rated frequency Hz ±1 %
- 50 Hz | 60 Hz
- Cooling cap. W at l/h
- 2150 W @ 400 l/h
- Power consumption (W10/A35) W
- 85 W | 100 W
- Current consumption (W10/A35) A
- 0,4 A
- Starting current (W10/A35) A
- 3 A
- Type of fuse | Pre fuse
- gG | 6 A
- Type of connection (electro)
- 3.5 Metres Of Cable 3 x 0.75 mm²
- Type of connection (fluid)
- 13 mm Hose Nozzle, Other Connectors On Request
- Weight (without packaging) kg
- 21 kg
- Ambient temperature °C
- +1 °C ... +70 °C
- Control range (adjustable) °C
- +8 °C ... +50 °C
- Water inlet temperature °C
- > +1 °C ... +35 °C
- Permissible operating pressure bar
- max. 10 bar
- Condensate management
- condensate drain
- Protection system according to EN 60529 towards the electrical enclosure
- IP 54
- Design housing
- Galvanised Steel, Electrostatically Powder Coated (200C)
- Design heat exchanger
- copper pipe with aluminium fins
- Colour
- RAL 7035
- Mounting position
- Top Mount
- Dimensions (H | W | D) mm
- 180 mm | 600 mm | 390 mm
- ETIM-Class
- EC002515
- Rated voltage V ±10 %
- AC 230 V / 230 V1~
- Rated frequency Hz ±1 %
- 50 Hz | 60 Hz
- Cooling capacity @ flow rate (W10/A35)
- 7336 BTU @ 400 l/h
- Power consumption (W10/A35)
- 85 W | 100 W
- Current consumption (W10/A35)
- 0.4 A
- Starting current (W10/A35)
- 3 A
- Type of fuse | Pre fuse
- gG | 6 A
- Type of connection (electro)
- 3.5 Metres Of Cable 3 x 0.75 mm²
- Type of connection (fluid)
- 13 mm Hose Nozzle, Other Connectors On Request
- Weight (without packaging)
- 46 lbs
- Ambient temperature range
- +34 °F ... +158 °F
- Control range (adjustable)
- +46 °F ... +122 °F
- Water inlet temperature
- > +34 °F ... +95 °F
- Permissible operating pressure
- max. 145 psi
- Condensate management
- condensate drain
- Protection system according to EN 60529 towards the electrical enclosure
- IP 54
- Design housing
- Galvanised Steel, Electrostatically Powder Coated (200C)
- Design heat exchanger
- copper pipe with aluminium fins
- Colour
- RAL 7035
- Mounting position
- Top Mount
- Dimensions (H | W | D)
- 5.5 in. | 23.6 in. | 15.4 in.
- ETIM-Class
- EC002515

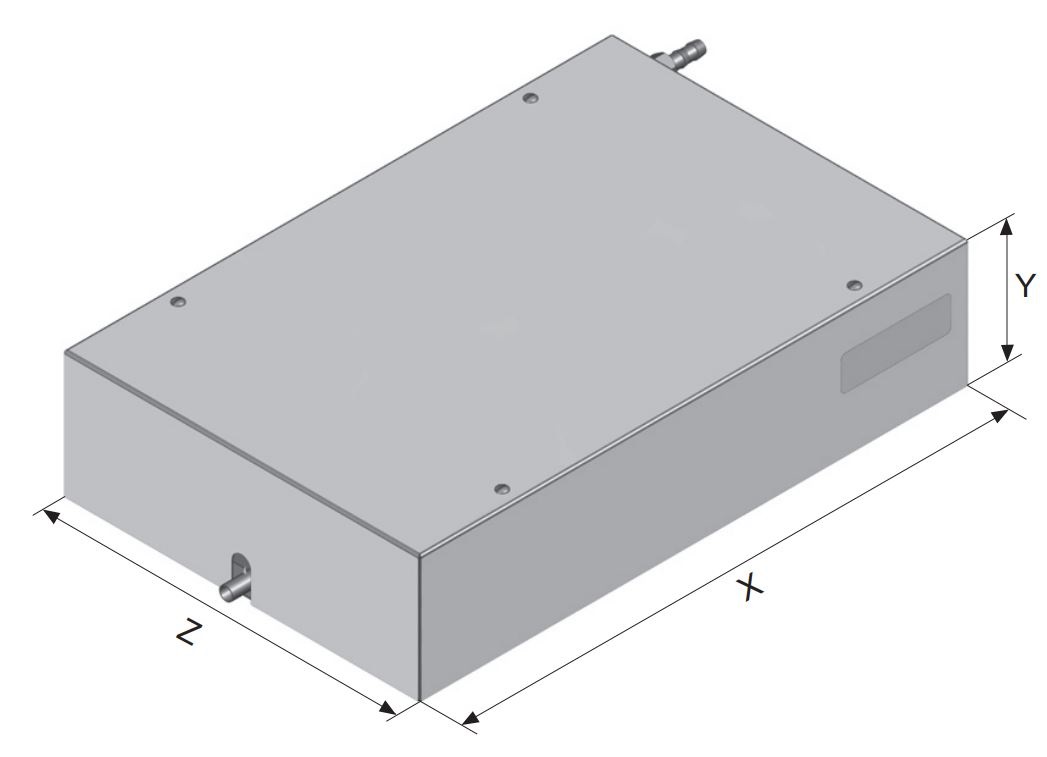

Technical Drawings
- A
- 230 mm
- B
- 360 mm
- C
- 105 mm
- D
- 207 mm
- E
- 358 mm
- F
- 143 mm
- X
- 600 mm
- Y
- 140 mm
- Z
- 390 mm
- A
- 9,06 in
- B
- 14,17 in
- C
- 4,13 in
- D
- 8,15 in
- E
- 14,09 in
- F
- 5,63 in
- X
- 23,62 in
- Y
- 5,51 in
- Z
- 15,35 in

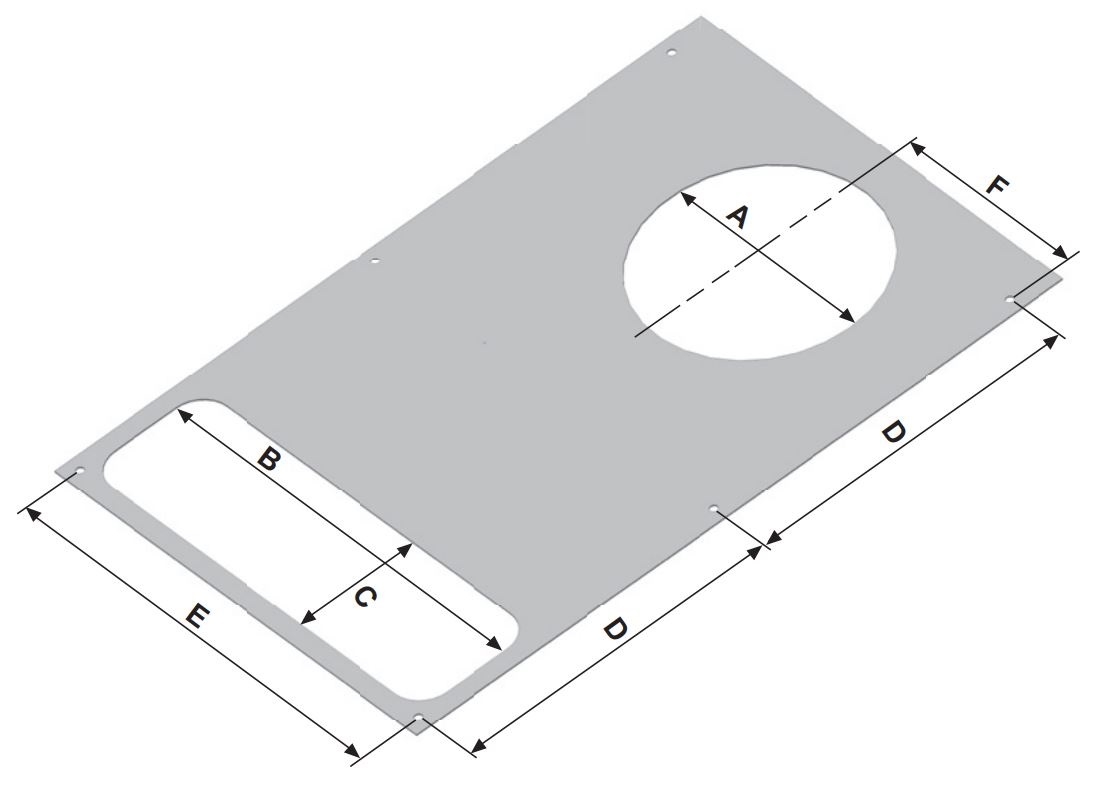

Cut-out radii R20
Technical Drawings
- A
- 230 mm
- B
- 360 mm
- C
- 105 mm
- D
- 207 mm
- E
- 358 mm
- F
- 143 mm
- X
- 600 mm
- Y
- 140 mm
- Z
- 390 mm
- A
- 9,06 in
- B
- 14,17 in
- C
- 4,13 in
- D
- 8,15 in
- E
- 14,09 in
- F
- 5,63 in
- X
- 23,62 in
- Y
- 5,51 in
- Z
- 15,35 in
Cut-out radii R20

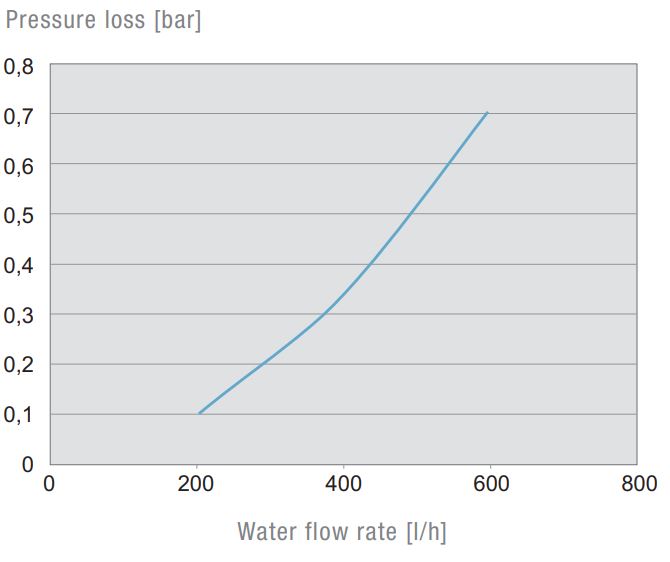

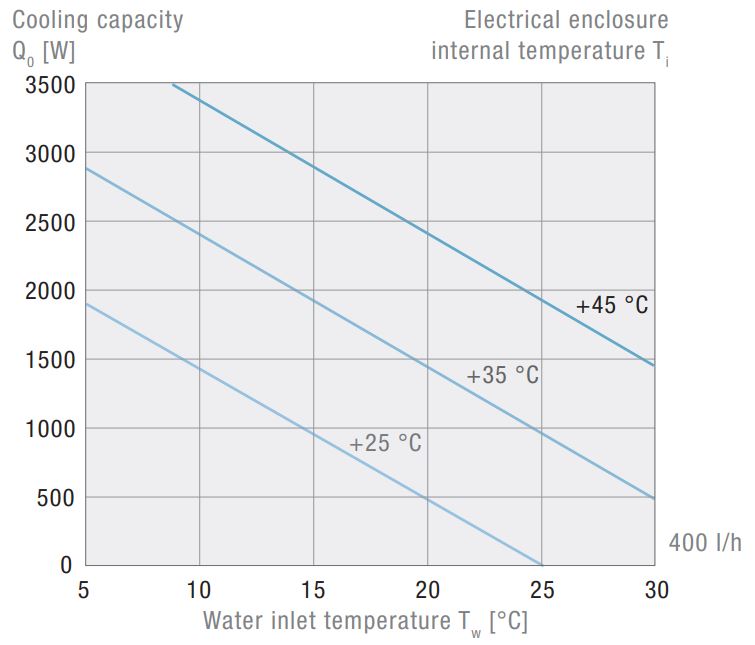

Diagrams

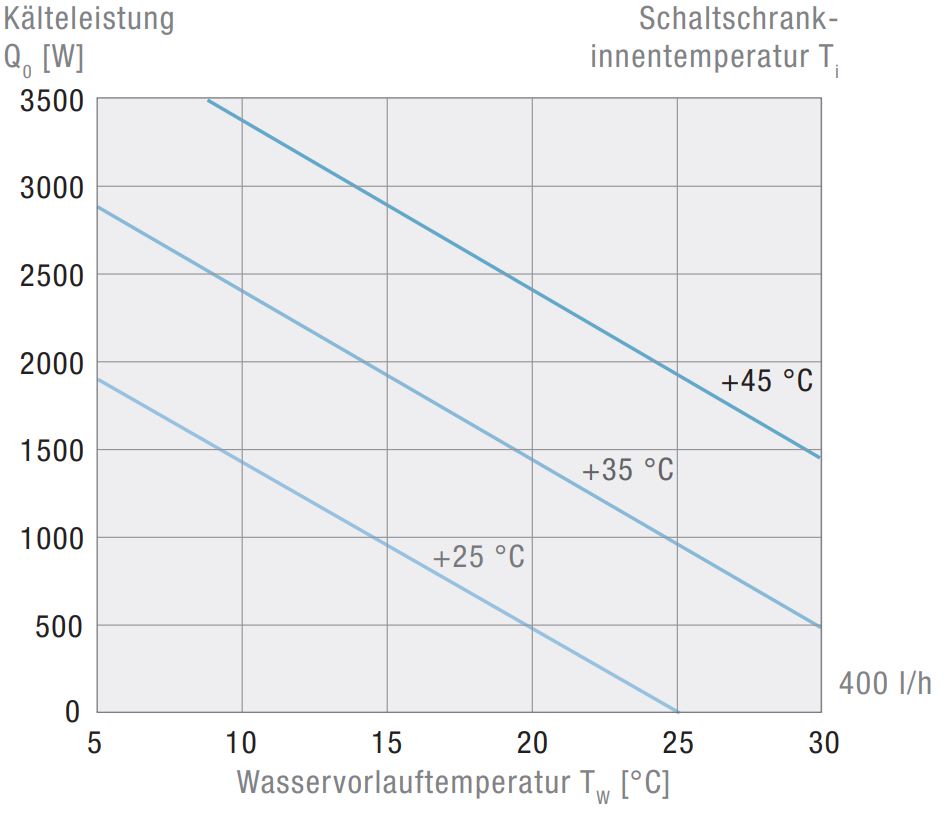

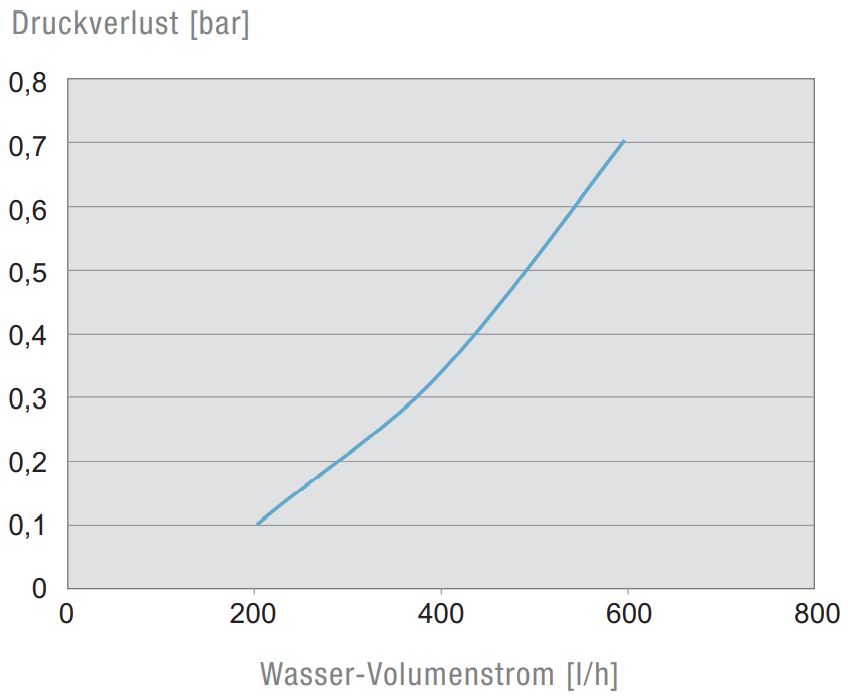

Diagrams
