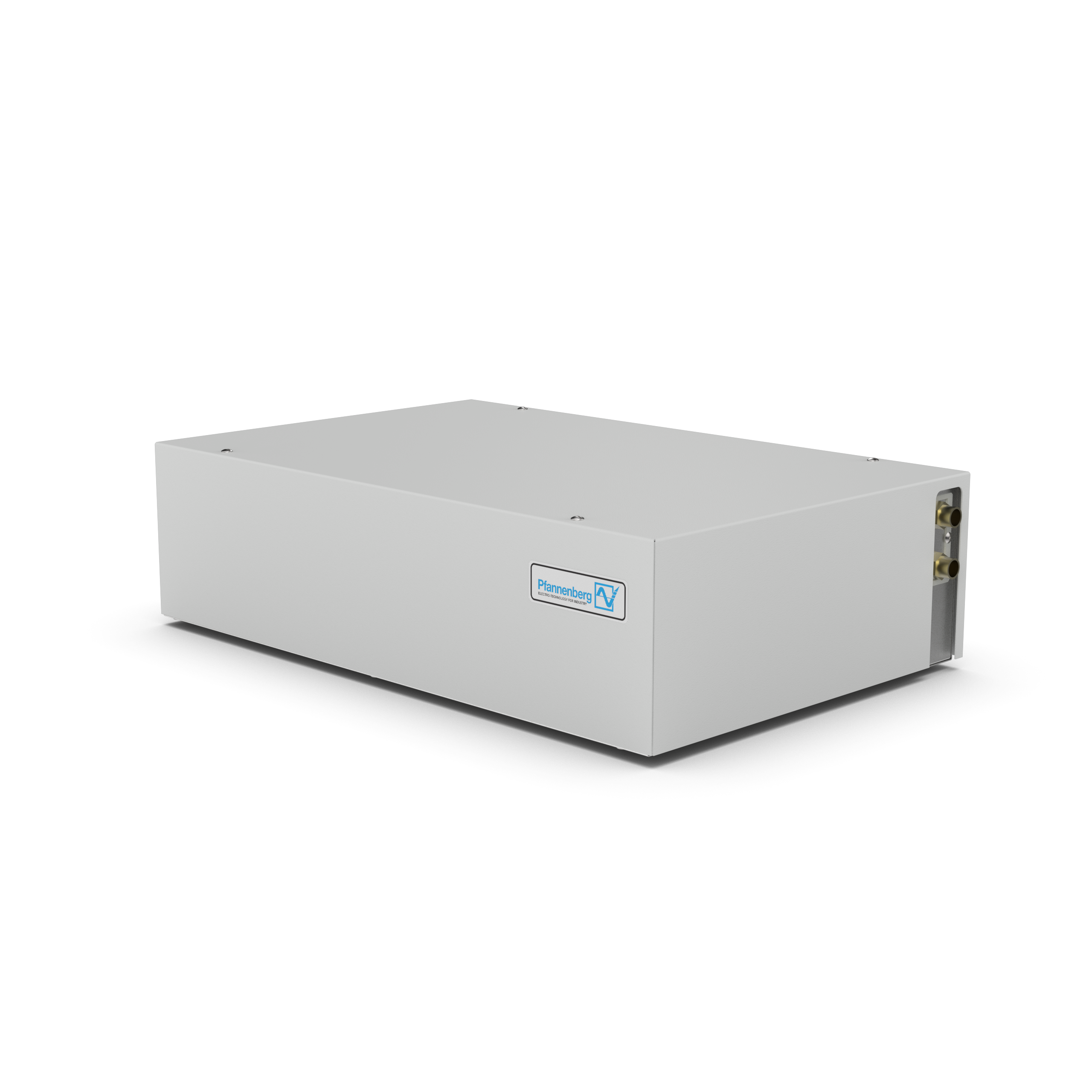

Technical Data


Technical Data
Rated voltage V ±10 %
AC 230 V / 230 V1~
Rated frequency Hz ±1 %
50 Hz | 60 Hz
Cooling cap. W at l/h
3400 W @ 400 l/h
Power consumption (W10/A35) W
115 W | 165 W
Current consumption (W10/A35) A
0,84 A
Starting current (W10/A35) A
4 A
Type of fuse | Pre fuse
gG | 6 A
Type of connection (electro)
3.5 Metres Of Cable 3 x 0.75 mm²
Type of connection (fluid)
13 mm Hose Nozzle, Other Connectors On Request
Weight (without packaging) kg
30 kg
Ambient temperature °C
+1 °C ... +70 °C
Control range (adjustable) °C
+8 °C ... +50 °C
Water inlet temperature °C
> +1 °C ... +35 °C
Permissible operating pressure bar
max. 10 bar
Condensate management
condensate drain
Protection system according to EN 60529 towards the electrical enclosure
IP 54
Design housing
Galvanised Steel, Electrostatically Powder Coated (200C)
Design heat exchanger
copper pipe with aluminium fins
Colour
RAL 7035
Mounting position
Top Mount
Dimensions (H | W | D) mm
190 mm | 720 mm | 465 mm
ETIM-Class
EC002515
Rated voltage V ±10 %
AC 230 V / 230 V1~
Rated frequency Hz ±1 %
50 Hz | 60 Hz
Cooling capacity @ flow rate (W10/A35)
11601 BTU @ 400 l/h
Power consumption (W10/A35)
115 W | 165 W
Current consumption (W10/A35)
0.84 A
Starting current (W10/A35)
4 A
Type of fuse | Pre fuse
gG | 6 A
Type of connection (electro)
3.5 Metres Of Cable 3 x 0.75 mm²
Type of connection (fluid)
13 mm Hose Nozzle, Other Connectors On Request
Weight (without packaging)
66 lbs
Ambient temperature range
+34 °F ... +158 °F
Control range (adjustable)
+46 °F ... +122 °F
Water inlet temperature
> +34 °F ... +95 °F
Permissible operating pressure
max. 145 psi
Condensate management
condensate drain
Protection system according to EN 60529 towards the electrical enclosure
IP 54
Design housing
Galvanised Steel, Electrostatically Powder Coated (200C)
Design heat exchanger
copper pipe with aluminium fins
Colour
RAL 7035
Mounting position
Top Mount
Dimensions (H | W | D)
7.5 in. | 28.3 in. | 18.3 in.
ETIM-Class
EC002515

Technical Drawings

Dimensions
A
230 mm
B
425 mm
C
128 mm
D
330 mm
E
434 mm
F
191 mm
X
720 mm
Y
190 mm
Z
465 mm
A
9,06 in
B
16,73 in
C
5,04 in
D
12,99 in
E
17,09 in
F
7,52 in
X
28,35 in
Y
7,48 in
Z
18,31 in

Cut-out radii R20

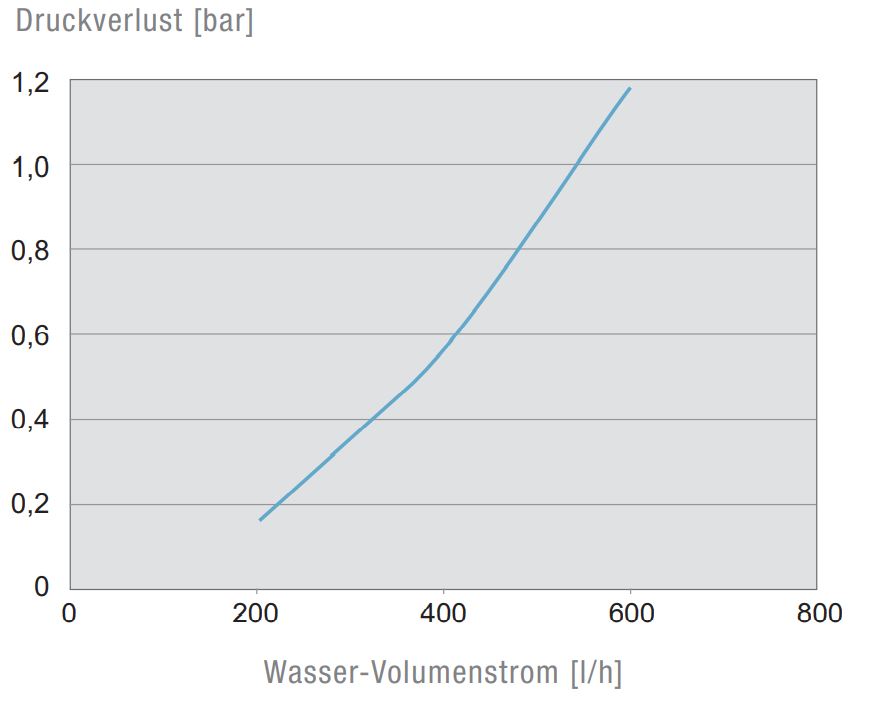

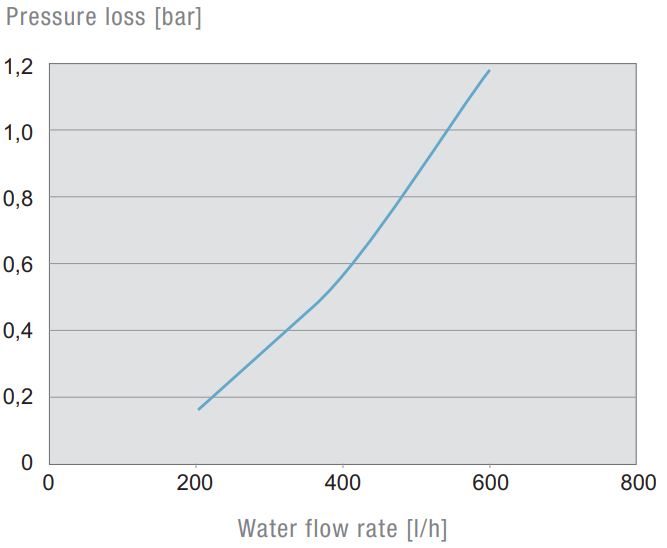

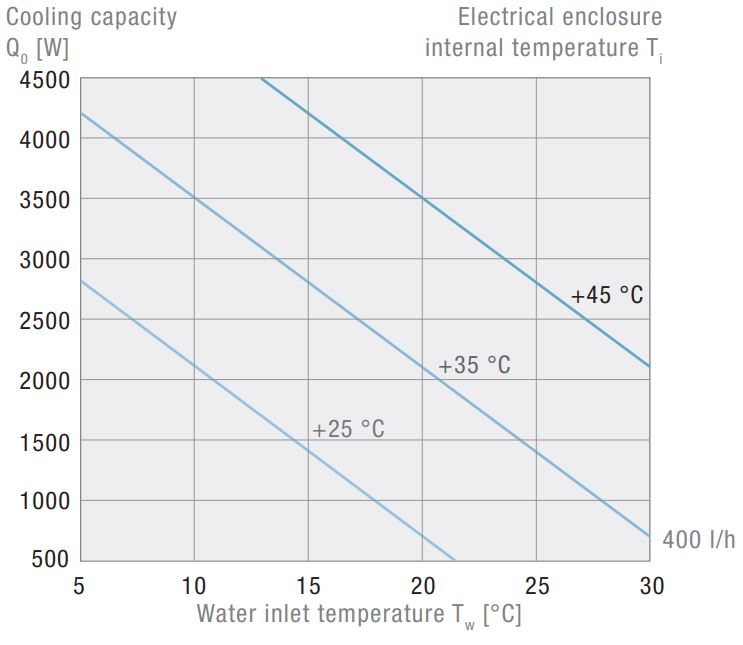

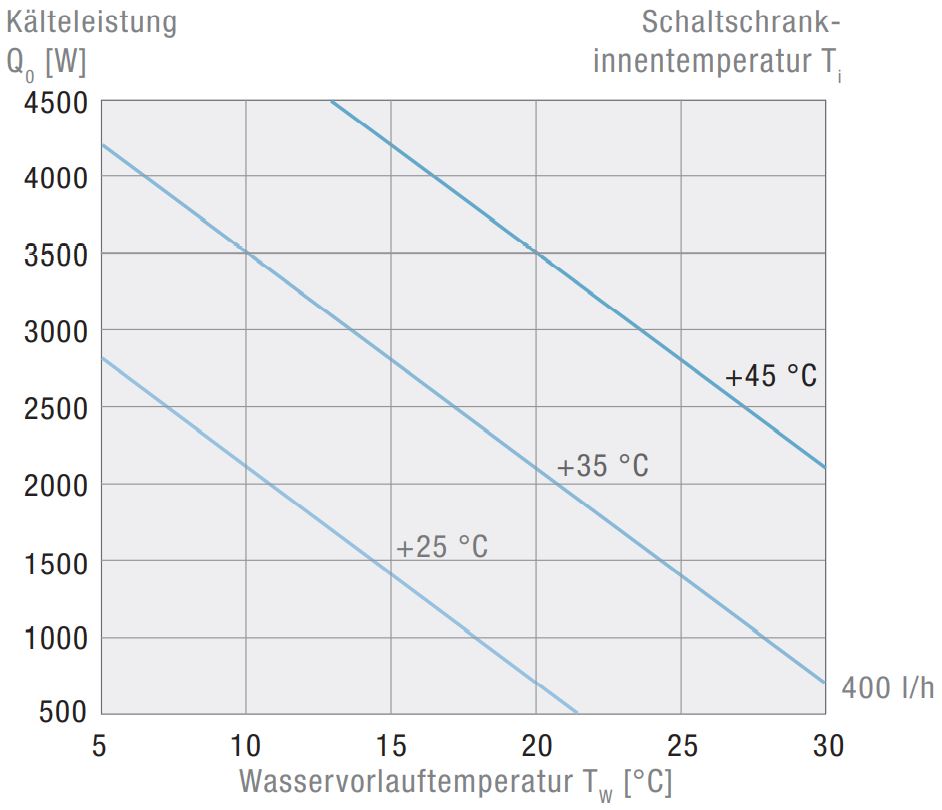

Diagrams

Downloads

Description Type Size Link
Manual PWx PDF 584.91 KB Download
Supplement PWD 53x2/ 54x2 PDF 552.41 KB Download
Conformity PWD 53xx - 54xx PDF 69.13 KB Download
TECHNICAL SUPPLEMENT PDF 424.45 KB Download
Manual PWx PDF 796.43 KB Download
CE DECLARATION PDF 42.62 KB Download
Description Language Type Size Link
EAC_Certificate_PW German PDF 1.64 MB Download
3D-model_STEP_PWD5402 German ZIP 1.71 MB Download
EAC_Certificate_PW Englisch PDF 1.64 MB Download
Product_Sheet_DE_PWD_5402_5302 German PDF 851.77 KB Download
UL_Certificate_PWx_5_7xxx Englisch PDF 377.5 KB Download
Manual_PWx Englisch PDF 1.41 MB Download
Product_Sheet_EN_PWD_5402_5302 Englisch PDF 850.71 KB Download
Manual_PWx German PDF 1.41 MB Download
UL_Certificate_PWx_5_7xxx German PDF 377.5 KB Download
3D-model_STEP_PWD5402 Englisch ZIP 1.71 MB Download
