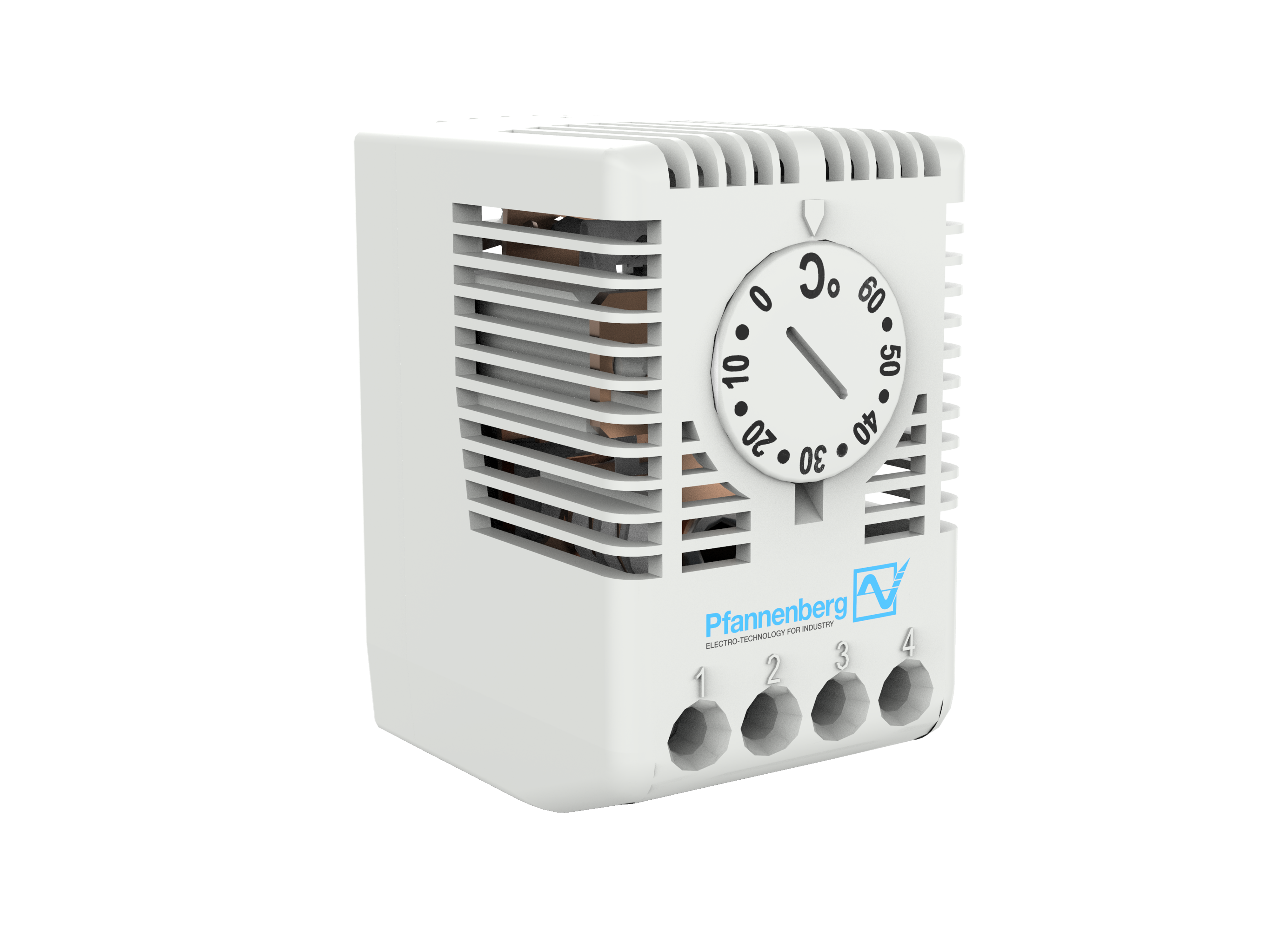

Thermostat FLZ510 UL,Changeover,-20-40C,1K
Thermostats are used as temperature regulators and thus to control filterfans, electrical cabinet heaters or can serve as an alarm setpoint. They are available as N.C. / N.O. and changeover contacts. In combination with electrical cabinet heaters, they can control temperature and also, particularly in outdoor applications, ensure that the electrical cabinet is 'artificially' dehumidified. This means that the temperature is kept over the dew point so that no condensation forms from the air preventing a potential short circuit. The combination with filterfans provides additional savings on energy, maintenance time and therefore provides a better environmental balance which improves the filterfans effectiveness. The twin thermostat series combines two thermostats in all combinations for complex switching tasks.
FLZ510 as Changeover switch with spring contact
- Suitable for the operation of fans and heaters
- Switching temperature difference 1K
- Switching point tolerance +/- 3K
- Temperature set range -20C to 40C
Thermostats for every application
- FLZ510: Changeover switch with spring contact
- FLZ520: N.C. with spring contact (suitable to control heaters)
- FLZ530: N.O. with spring contact (suitable to control fans)
- FLZ541: N.C. and N.O. with spring contact in one housing
- FLZ542: N.C. and N.C. with spring contact in one housing
- FLZ543: N.O. and N.O. with spring contact in one housing
The advantages of the series at a glance:
- Is suitable for all industrial applications
- No influence due to EM radiation, because a contact that switches mechanically is integrated
- Extends the service life of heaters and fans
- Optimized energy consumption for heaters and filterfans
- Easy installation on profile rails
- Electrical connection via screw terminals
- IP 20 protection for installation inside the electrical cabinet
- Approvals: cURus, EAC
Product information "Thermostat FLZ510 UL,Changeover,-20-40C,1K"
Thermostats are used as temperature regulators and thus to control filterfans, electrical cabinet heaters or can serve as an alarm setpoint. They are available as N.C. / N.O. and changeover contacts. In combination with electrical cabinet heaters, they can control temperature and also, particularly in outdoor applications, ensure that the electrical cabinet is 'artificially' dehumidified. This means that the temperature is kept over the dew point so that no condensation forms from the air preventing a potential short circuit. The combination with filterfans provides additional savings on energy, maintenance time and therefore provides a better environmental balance which improves the filterfans effectiveness. The twin thermostat series combines two thermostats in all combinations for complex switching tasks.
FLZ510 as Changeover switch with spring contact
- Suitable for the operation of fans and heaters
- Switching temperature difference 1K
- Switching point tolerance +/- 3K
- Temperature set range -20C to 40C
Thermostats for every application
- FLZ510: Changeover switch with spring contact
- FLZ520: N.C. with spring contact (suitable to control heaters)
- FLZ530: N.O. with spring contact (suitable to control fans)
- FLZ541: N.C. and N.O. with spring contact in one housing
- FLZ542: N.C. and N.C. with spring contact in one housing
- FLZ543: N.O. and N.O. with spring contact in one housing
The advantages of the series at a glance:
- Is suitable for all industrial applications
- No influence due to EM radiation, because a contact that switches mechanically is integrated
- Extends the service life of heaters and fans
- Optimized energy consumption for heaters and filterfans
- Easy installation on profile rails
- Electrical connection via screw terminals
- IP 20 protection for installation inside the electrical cabinet
- Approvals: cURus, EAC
| Approvals: | CE |
|---|---|
| Dimensions (H | W | D) mm: | 59.5mm|37mm|47.5mm |
| ETIM-Class: | EC004587 |
| Max. switching power value in brackets: inductive load at cos φ = 0.6: | DC: max. 30 W, N.C.: 100–250 V AC / 10 (2) A, N.O.: 100–250 V AC / 5 (2) A |
| Type of contact: | changeover with spring contact |
| Weight kg: | 75 g |
| Switching temperature difference K: | 1 K |
| Switching point tolerance K: | ±3 K |
| Setting temperature range °C: | -20 °C ... +40 °C |
| Operating temperature °C: | –40 … +80 °C |
| Suitable operation: | fan and heater |
| Probe type: | bimetal |

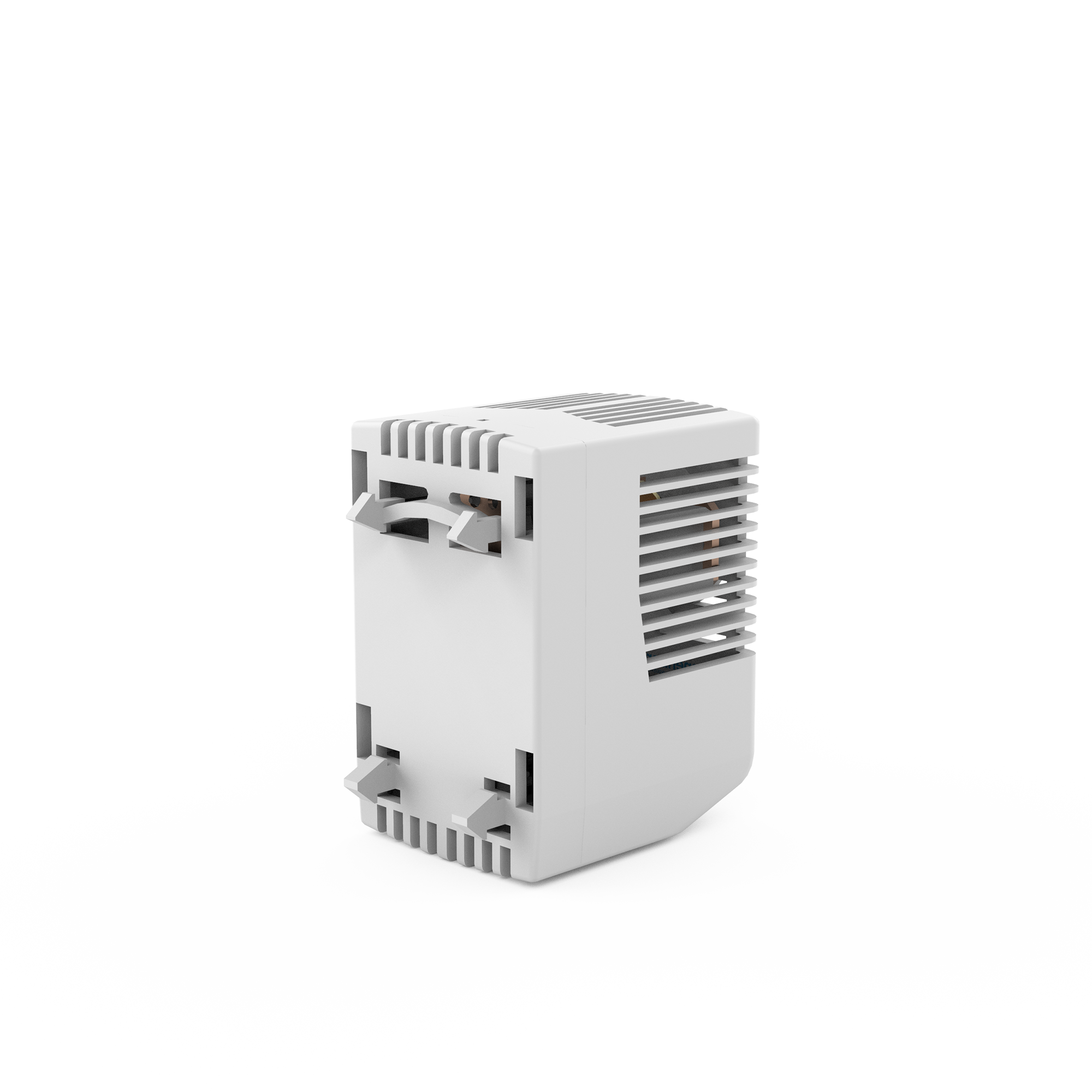

| Type of mounting: | snap fastening for 35mm profile bars according to EN 60715 |
| Type of connection: | screw terminal for cable cross-section 0.5 to 2.5 mm² |
| Colour: | RAL 7035 |
