Technical Data


Technical Data
Rated voltage V ±10 %
AC 400 3~
Rated frequency Hz ±1 %
50 Hz
Cooling capacity kW
47 kW
Flow rate (pump) l/min
150 l/min
Pump pressure bar
3 bar
Medium
water/glycol - 80/20
Medium temperature °C
+8 °C ... +30 °C
Target value tolerance K
±1 K
Refrigerant (type | amount)
R410A | 6 kg
Control voltage V
24V AC
Tank volume l
300 l
Connection
1 1/2 inch
Weight (without packaging) kg
550 kg
Protection system according to EN 60529 (e-box)
IP 54
Colour
RAL 7035
Dimensions (H | W | D) mm
2.030 mm | 1.240 mm | 830 mm
Depth mm
830 mm
Width mm
1.240 mm
Height mm
2.030 mm
ETIM-Class
EC002516

Technical Drawings

Dimensions
X
830 mm
Y
2030 mm
Z
1240 mm

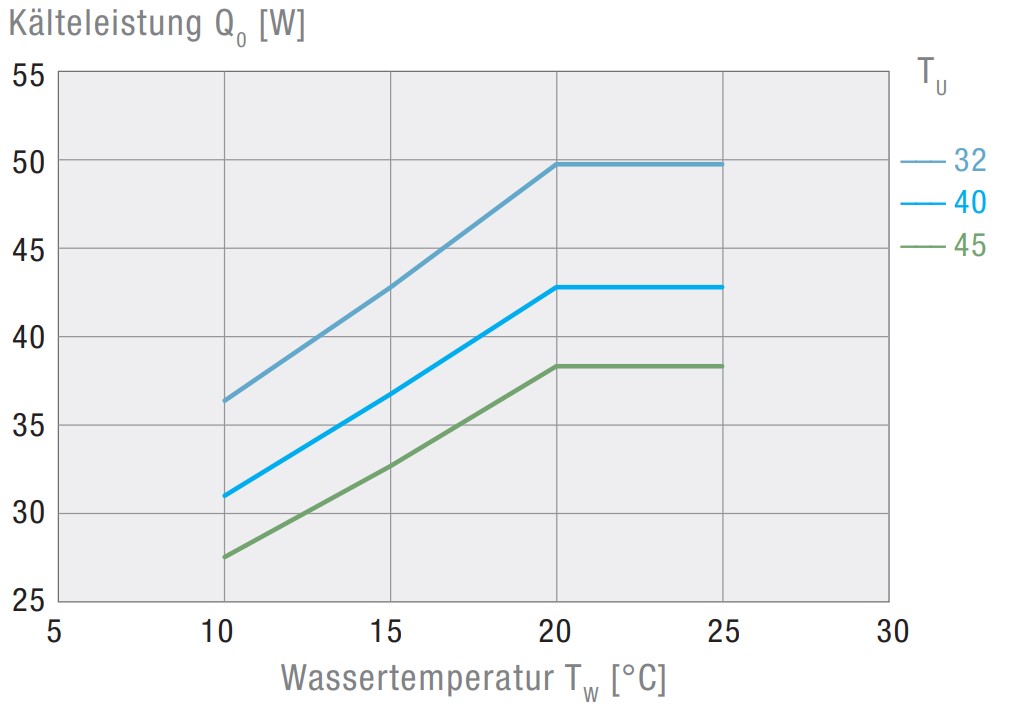

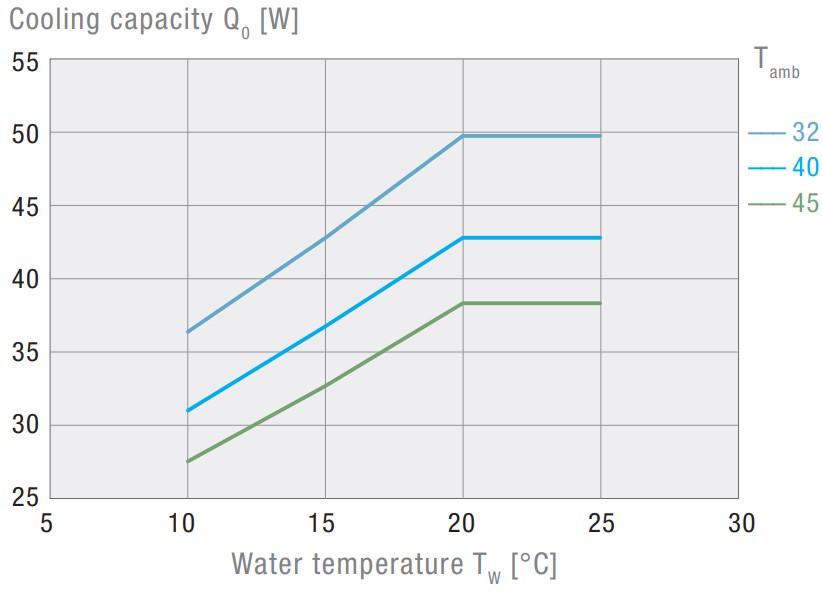

Diagrams

Downloads

Description Language Type Size Link
Main_Dimensions_EB_XT_300-600 German PDF 158.35 KB Download
Product_Sheet_EN_EB_XT_400WT-600WT Englisch PDF 792.17 KB Download
EAC_Certificate_Chiller Englisch PDF 932.98 KB Download
Product_Sheet_DE_EB_XT_400WT-600WT German PDF 793.32 KB Download
Hydraulic_Diagram_EB_XT_500_WT_42145005001 Englisch PDF 192.59 KB Download
Main_Dimensions_EB_XT_300-600 Englisch PDF 158.35 KB Download
Performance_Curves_EN_EB_XT_500_WT German PDF 63.31 KB Download
Hydraulic_Diagram_EB_XT_500_WT_42145005001 German PDF 192.59 KB Download
Performance_Curves_EN_EB_XT_500_WT Englisch PDF 63.31 KB Download
CE_Declaration_IT-EN_EB-XT_400-1600 German PDF 402.52 KB Download
EAC_Certificate_Chiller German PDF 932.98 KB Download
CE_Declaration_IT-EN_EB-XT_400-1600 Englisch PDF 402.52 KB Download
Placement_EB_XT_300-600 German PDF 75.44 KB Download
Placement_EB_XT_300-600 Englisch PDF 75.44 KB Download
